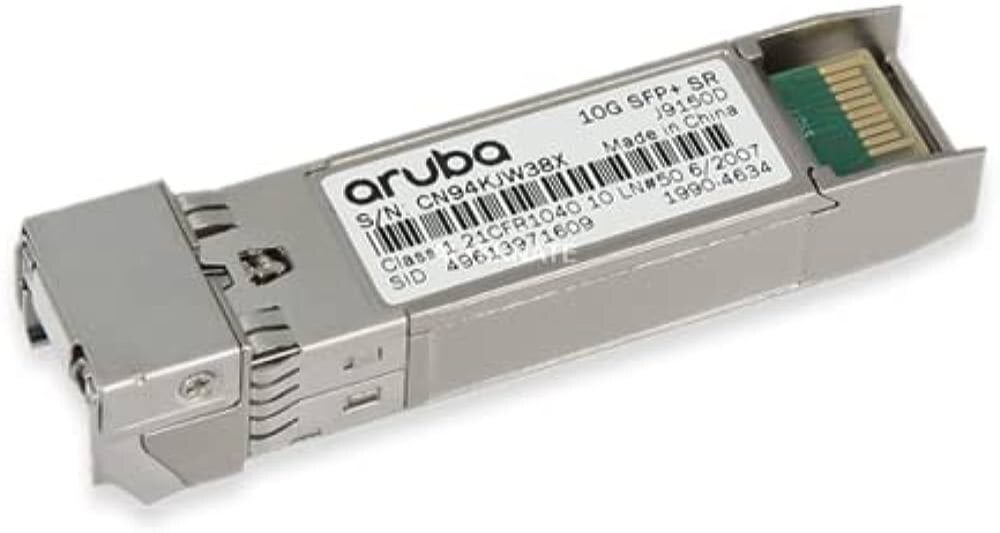

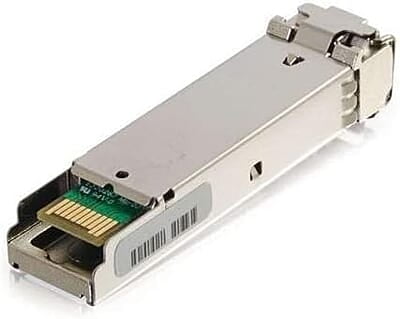

J9150D
The J9150D is a 10 Gigabit Small Form-factor Pluggable (SFP+) transceiver module made by HPE for Aruba networking equipment. It's used for high-speed data transmission over short distances using multimode fiber optic cables. Here are its key features:
- Speed: Supports data rates up to 10 Gigabits per second (Gbps).
- Distance: Designed to transmit data for up to 300 meters (984 feet).
- Cable Type: Uses multimode fiber optic cables with LC connectors.
- Wavelength: Operates at a wavelength of 850 nanometers (nm).
- Plug-and-Play: Easy to install without any special configuration.
- Diagnostics: Supports Digital Diagnostics Monitoring (DDM) for monitoring module performance.
J9150D Specification | |
Product name (SKU) | Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D) |
DOM - Digital Optical Monitoring (4x4 part #) | Yes (1990-4391 & 1990-4175) |
Central wl (nm) | 850 |
Fiber mode | MMF |
Fiber diameter (µm) | Modal bandwidth (MHz*km) | Transmission distance | 50/125 | 4700 (OM4), 2000 (OM3), 500 (OM2), 400 | 400 m (1312.34 ft), 300 m (984.25 ft), 82 m (269.03 ft), 66 m (216.54 ft) |
62.5/125 | 200 (OM1), 160 | 33 m (108.27 ft), 26 m (85.30 ft) | |
Optical parameters (dBm) Transmit power | –7.3 to –1 |
Optical parameters (dBm) Receive power | –9.9 to +0.5 |
Product dimensions (H x W x D) | 0.6 x 2.2 x 0.5 in |
Weight | 0.1 lb |
