R2X06A
(1) Fast 802.11ac Wave 2, 2X2:2 MU-MIMO performance
(2) Smart Mesh Wi-Fi support
(3) Built in Wi-Fi router/gateway functionality
(4) Content and device blocking controls
(5) Simple to use bandwidth tuning for power-users
(6) Easy-to-use web and mobile app for setup and management
(7) Secure Guest Wi-Fi with simple setup
(8) Application classification, control and visibility
(9) PPPoE and static IP
R2X06A Specification | |
Radios | Dual Radio for simultaneous dual-band operation 5 GHz 802.11ac 3x3 MIMO for up to 1,733Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2x2 MIMO for up to 300Mbps wireless data rate (Wi-Fi 4) |

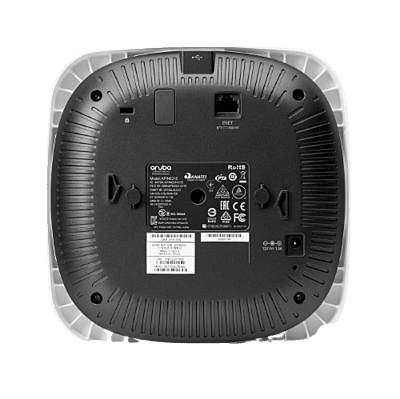

Interfaces | Uplink Gigabit Ethernet port, with POE-in support (802.3af) DC power connector (12V) USB host interface (future use) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot |
Antennas | Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz |
Dimension | 183mm x 183mm x 41mm, excluding mount accessories |
Power | Power over Ethernet (POE): 802.3af (class 3) Max power consumption (worst-case): 14.4W (PoE), 12.7W (DC) DC power (12V) Note: Power sources are sold separately |
Mounting | The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling) |
Environmental & reliability | Operating Temperature: 0° C to +50° C (+32° F to +122° F) MTBF: 916khrs (105yrs) at +25° C |
Industry certifications | UL2043 plenum rating EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3 |
Management options | Instant On mobile application (Android & iOS) Cloud Portal: Portal.ArubaInstantOn.com |
