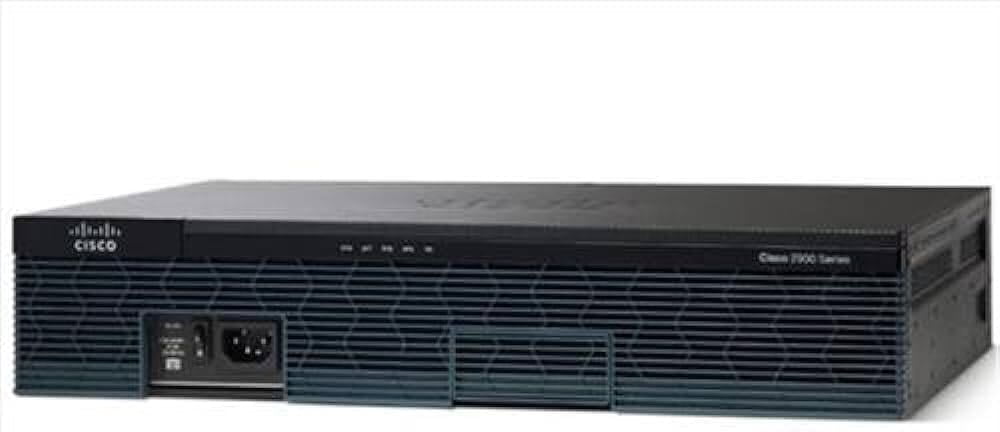

C2911-CME-SRST/K9
C2911-CME-SRST/K9 is a Cisco 2911 router bundled with Voice Bundle w/PVDM3-16, FL-CME-SRST-25, UC License PAK.
When Unified CME is used in SRST mode, it provides more call processing features for the IP phones than those are available with the SRST feature on a router. In addition, to the SRST features such as call preservation, auto-provisioning, and failover, Unified CME in SRST mode also provides most of the Unified CME telephony features for the SCCP phones, including:
☆ Paging
☆ Conferencing
☆ Hunt groups
☆ Basic automatic call distribution (B-ACD)
☆ Call park, call pickup, call pickup groups
☆ Overlay-DN, softkey templates
☆ Cisco IP Communicator
☆ Cisco Unified Video Advantage
☆ Integration with Cisco Unity with MWI support at remote sites, with distributed Microsoft Exchange or IBM Lotus Domino server
C2911-CME-SRST/K9 Specification
C2911-CME-SRST/K9 Specifications | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | C2911-CME-SRST/K9 |
Bundle | 2911 Voice Bundle w/PVDM3-16,FL-CME-SRST-25, UC License PAK |
Product Type | Router |
Form Factor | External - modular - 2U |
Dimensions (WxDxH) | 43.8 cm x 30.5 cm x 4.5 cm |
Weight | 8.2 kg |
DRAM Memory | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | SNMP, RMON |
Digital Ports Qty | 16 |
Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED) |
Compliant Standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
Power | AC 120/230 V ( 50/60 Hz ) |
