C9407R

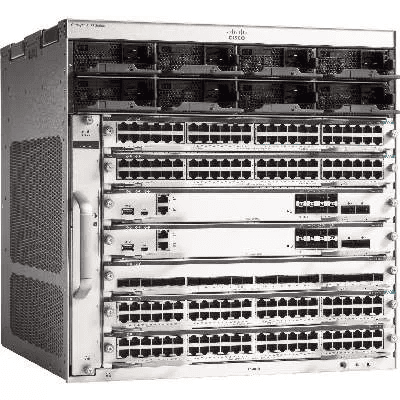

Cisco Catalyst C9407R Specification

Total number of slots

7

Line-card slots

5

Supervisor engine slots

2

Dedicated supervisor engine slot numbers

3 and 4

Supervisor engine redundancy

Yes

Supervisor engines supported

C9400-SUP-1,

C9400-SUP-1XL, C9400-SUP-1XL-Y

Maximum PoE per slot

2880W

Maximum Bandwidth scalability per line-card slot

Up to 480 Gbps on all slots

Number of power supply bays

8

AC input power

Yes

Integrated PoE

Yes

Power supplies supported

3200W AC, 2100W AC

Number of fan-tray bays

1

Location of 19-inch rack-mount

Front

Dimensions (H x W x D)

17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm)

Rack Units (RU)

10 RU

Chassis weight (with fan tray)

63.0 lb (28.58 kg)

Mounting

19-in rack compatible (19-in. rack and cable guide hardware included)

Regulatory compliance

CE Marking

Safety

● UL 60950-1

● CAN/CSA-C222.2 No. 60950-1

● EN 60950-1

● IEC 60950-1

● AS/NZS 60950.1

● IEEE 802.3

EMC

● 47 CFR Part 15

● CISPR22 Class A

● KN 32 Class A

● EN 300 386 V1.6.1

● EN 55022 Class A

● EN 55032 Class A

● CISPR 32 Class A

● EN61000-3-2

● EN61000-3-3

● ICES-003 Class A

● TCVN 7189 Class A

● V-3 Class A

● CNS13438 Class A

● CISPR24

● EN 300 386

● EN55024

● TCVN 7317

● KN35

Industry EMC, safety, and environmental standards

● NEBS: Operating temperature: -5 to 55C

● Relative Humidity: 10-93%

● Operating Altitude: up to 1829 m (6000 ft) at 55C

● ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.

● SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue)

● ETS 300 019-2-1, Class 1.2 Storage

● ETS 300 019-2-2, Class 2.3 Transportation

● ETS 300 019-2-3, Class 3.2 Stationary

● EN50121-4

● EN 300 386

ROHS compliance

ROHS5
