EAP115
SAR175.00
Out of stock
Tags:
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Product Details

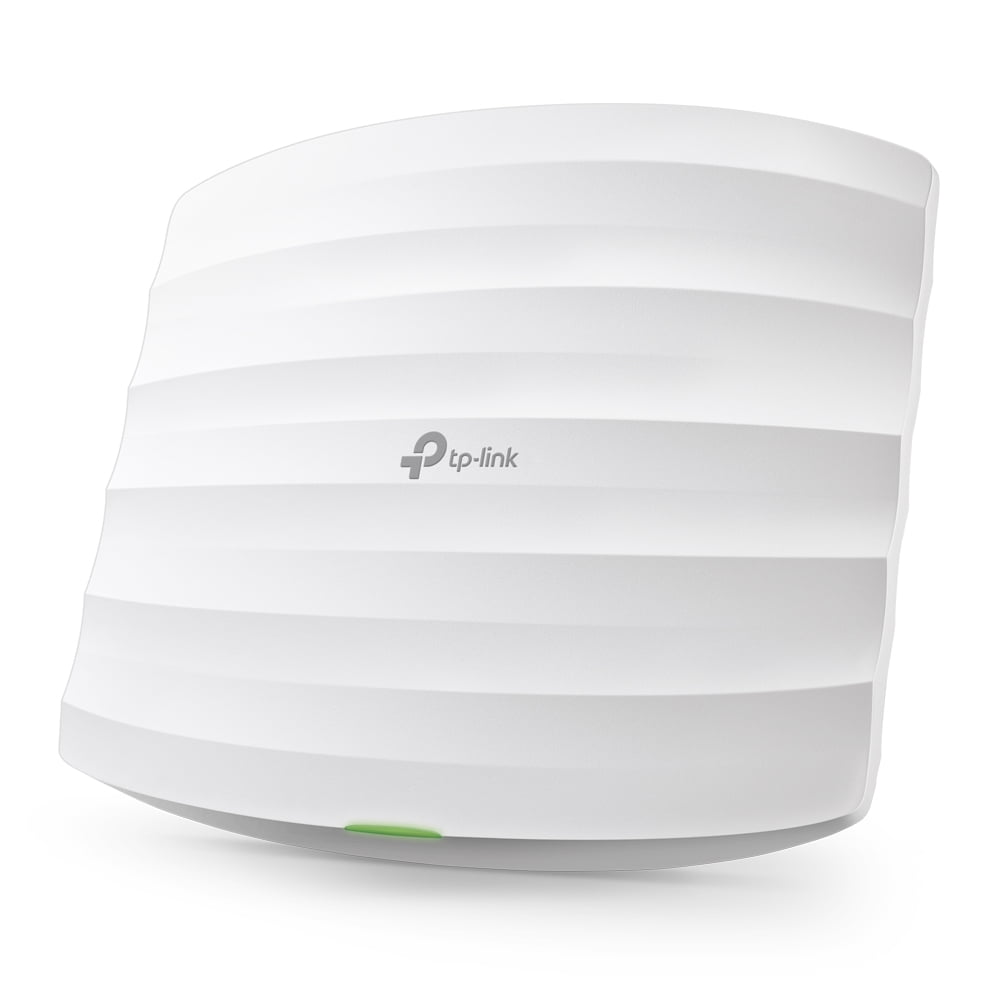

EAP115 300Mbps Wireless N Ceiling Mount Access Point
- Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
- PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
- Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.*
- Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
- Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
HARDWARE FEATURES
| Interface | 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE) |
|---|---|
| Button | Reset |
| Power Supply | 802.3af PoE or external 9VDC/0.6A power supply |
| Power Consumption | 2.8 W |
| Dimensions ( W x D x H ) | 7.5×6.8×1.2 in (189.4×172.3×29.5mm) |
| Antenna Type | Internal 2× 4 dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
WIRELESS FEATURES
| Wireless Client Capacity | 100+** |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4–2.4835 GHz |
| Signal Rate | • 11n: Up to 300Mbps(dynamic) • 11g: Up to 54Mbps(dynamic) • 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | • 300M: -71dBm@10% PER • 150M: -75dBm@10% PER • 54M: -78dBm@10% PER • 11M: -93dBm@8% PER • 6M: -92dBm@10% PER • 1M: -96dBm@8% PER |
| Wireless Functions | • Multiple SSIDs (Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | • CE: ≤19 dBm (EIRP) • FCC: ≤21 dBm |
MANAGEMENT
| Omada App | Yes |
|---|---|
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
