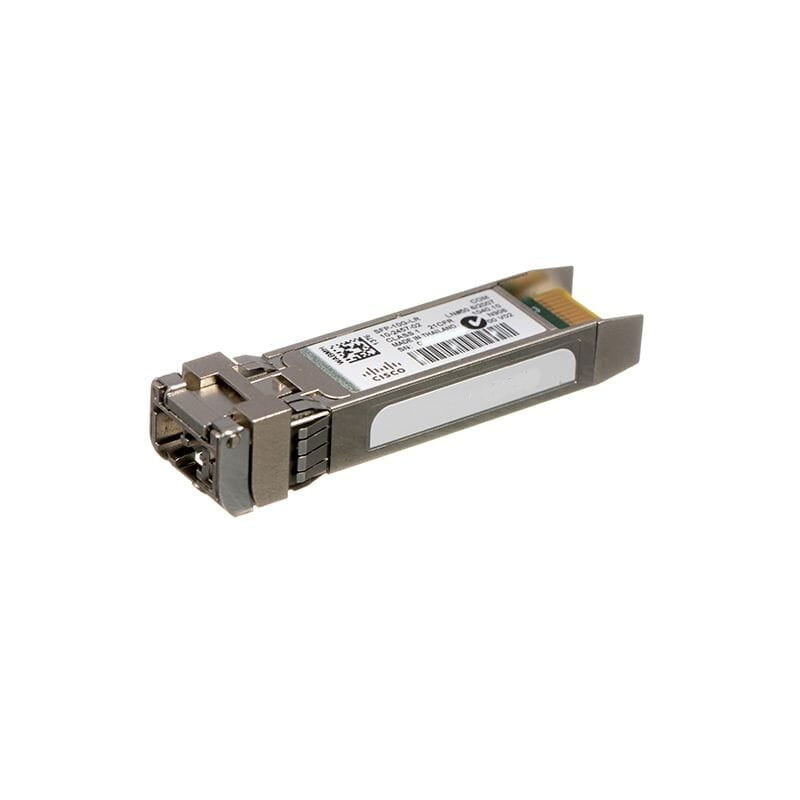

SFP-10G-LR
Cisco SFP-10G-LR module is the single-mode 10G fiber optical transceiver, the Cisco 10G Base-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652) and SFP-10G-LR SFP Plus optical transceiver from Solid-Optics offers up to 10Km link length on standard single-mode fiber.
SFP-10G-LR Overview
Cisco SFP-10G-LR module is the single-mode 10G fiber optical transceiver, the Cisco 10G Base-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652) and SFP-10G-LR SFP Plus optical transceiver from Solid-Optics offers up to 10Km link length on standard single-mode fiber.
The Features
☆ Industry’s smallest 10G form factor for greatest density per chassis
☆ Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
☆ Supports “pay-as-you-populate” model for investment protection and ease of technology migration
☆ Digital optical monitoring capability for strong diagnostic capabilities
☆ Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
☆ Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
SFP-10G-LR Specifications | |
| Product Model | Cisco SFP-10G-LR |
| Data Rate | 10 Gbps |
Form Factor | SFP+ |
Wavelength | 1310nm |
Connector | Duplex LC |
Transmitter Type | DFB |
Powerbudget | 6.2dB |
Power Consumption | ≤1W |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Max Data Rate | 10.3125Gbps |
Media | SMF |
