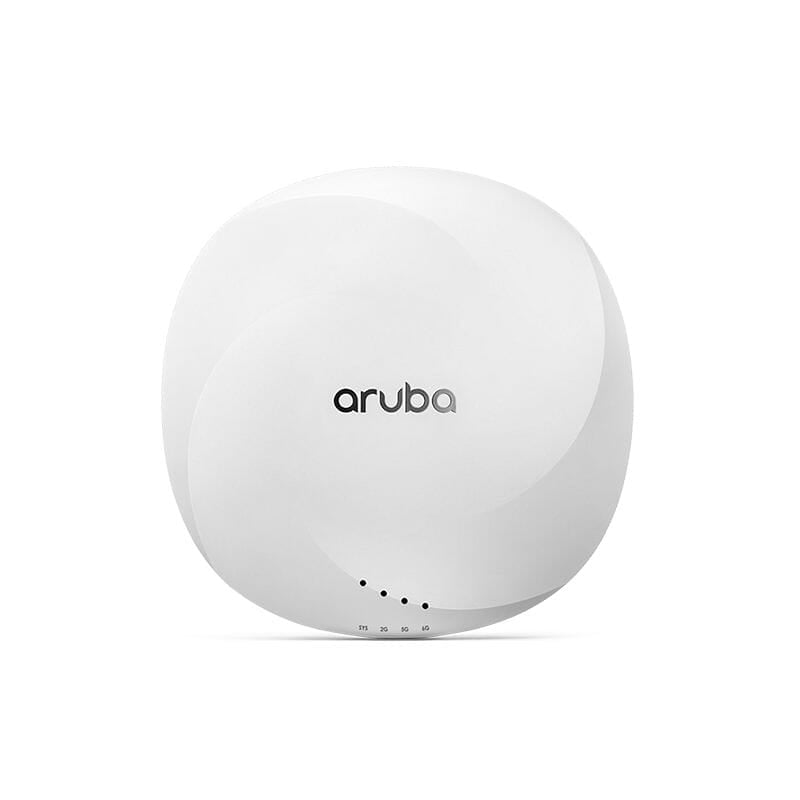

R7J27A
R7J27A
R7J27A

R7J27A

Non-returnable
SAR2,600.00
Out of stock

The 630 Series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor use. With up to seven 160 MHz channels, the 630 Series maximizes performance for low-latency, bandwidth-hungry applications. Aruba’s ultra tri-band filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 Series includes dual port hitless failover for ethernet and power.


Product Details


R7J27A Specification

Ports

E0, E1: Two Ethernet wired network ports (RJ-45)
Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
2.5Gbps speed complies with NBase-T and 802.3bz specifications
POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)

Mounting

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately).

Connectivity, standard

WLAN: tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

Input voltage

12 Vdc (+/- 5%) or 48 Vdc (nominal) POE

Power Consumption

23.8W worst case (POE powered), 20.7W worst case (DC). Excludes power needed to supply up to 5W to an attached USb device.

Heat dissipation

66.3 BTU/hr worst case (POE powered), 57.9 BTU/hr worst case (DC)

Certifications

UL2043 plenum rating
Wi-Fi Alliance
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6E (ax, 6GHz)
WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband
Wi-Fi Location
Passpoint (release 2)
Bluetooth SIG
Ethernet Alliance (POE, PD device, class 5)

Regulatory

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950 IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2

Wi-Fi antenna

Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.6dBi in 2.4GHz, 7.0dBi in 5GHz and 6.3dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9dBi in 2.4GHz, 4.9dBi in 5GHz and 4.3dBi in 6GHz.

Radio coverage

Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO

Product Dimensions (metric)

220mm (W) x 220mm (D) x 50mm (H)
