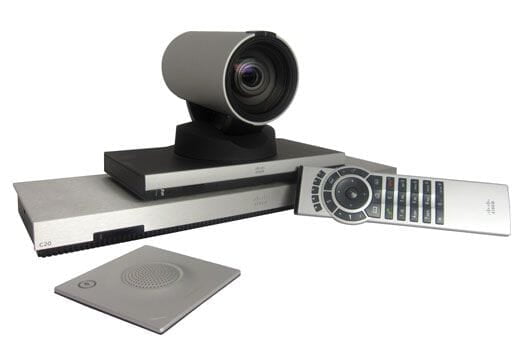

CTS-SX20-PHD12X-K9
CTS-SX20-PHD12X-K9 Specification | |
Software compatibility | ● Cisco TelePresence Software Version TC 5.1 or later ● Cisco Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control) |
Product delivered with | ● SX20 Codec ● Cisco TelePresence Precision Camera (choice of Precision 40 or 12X) ● TRC6 remote control ● Cables and power supply |
Optional hardware components | ● Cisco TelePresence Touch 10 ● Wall mount kit ● Additional microphone ● Presentation cable (VGA or HDMI) ● Camera mount bracket for P40 or 12X ● Spare: TRC5 remote control to be used with TC 7.3 software can be acquired as spare |
Bandwidth | ● H.323 and SIP up to 6 Mbps |
Minimum bandwidth for resolution/frame rate | ● 720p30 from 768 kbps ● 720p60 from 1152 kbps ● 1080p30 from 1472 kbps ● 1080p60 from 2560 kbps |
Firewall Traversal | ● Cisco TelePresence Expressway Technology ● H.460.18, H.460.19 firewall traversal |
Video Standards | ● H.263, H.263+, H.264 |
Video Features | ● Native 16:9 widescreen ● Advanced screen layouts ● Local auto-layout |
Video Inputs | One HDMI and One DVI-I (Analog and Digital); supports formats up to maximum 1920x1080 @ 60 fps (HD1080p60), including: ● 640x480 ● 720x480 ● 720x576 ● 800x600 ● 848x480 ● 1024x768 ● 1152x864 ● 1280x720 ● 1280x1024 ● 1280x768 ● 1280x800 ● 1280x960 ● 1360x768 ● 1366x768 ● 1400x1050 ● 1440x900 ● 1680x1050 ● 1920x1080 Extended Display Identification Data (EDID) |
Video Outputs (Two Outputs) | Two HDMI Outputs Supported Formats: ● 1920 x 1080@60 fps (1080p60) ● 1920 x 1080@50 fps (1080p50) ● 1280 x 720@60 fps (720p60) ● 1280 x 720@50 fps (720p50) ● 1366 x 768@60 fps (WXGA) ● 1360 x 768@60 fps(WXGA) ● 1280 x 768@60 fps (WXGA) ● 1280 x 1024@60 fps ● 1024 x 768@60 fps VESA Monitor Power Management (DPM) CEC Power Management supported on HDMI output EDID Live Video Resolutions (Encode and Decode): ● 176 x 144@30, 60 fps (QCIF) (Decode only) ● 352 x 288@30, 60 fps (CIF) ● 512 x 288@30, 60 fps (w288p) ● 576 x 448@30, 60 fps (448p) ● 768 x 448@30, 60 fps (w448p) ● 704 x 576@30, 60 fps (4CIF) ● 1024 x 576@30, 60 fps (w576p) ● 640 x 480@30, 60 fps (VGA) ● 800 x 600@30, 60 fps (SVGA) ● 1024 x 768@30, 60 fps (XGA) ● 1280 x 768@30, 60 fps (WXGA) ● 1280 x 720@30, 60 fps (HD720p) ● 1920 x 1080@30, 60 fps (HD1080p) |
Audio Standards | ● G.711, G.722, G.722.1, G.728, G.729, AAC-LD and OPUS |
Audio Features | ● High quality 20 KHz stereo ● Two acoustic echo cancellers ● Automatic Gain Control (AGC) ● Integration with third-party audio systems ● Automatic noise reduction ● Active lip synchronization |
Audio Inputs | ● Two microphones, 4-pin minijack ● One minijack for line-in (stereo) ● One audio in from camera (HDMI) |
Audio Outputs | ● One minijack for line out (stereo) ● One HDMI, (digital main audio) |
Dual Stream | ● H.239 (H.323) dual stream ● BFCP (SIP) dual stream ● Support resolutions up to 1080p) at 30 frames per second |
Multipoint Support | ● Four-way embedded SIP/H.323 conferencing capability with MultiSite option ● Ad-hoc conferencing supported through: ◦ Unified Communications Manager Media Resource Group (requires a Cisco TelePresence MCU) ◦ Cisco TelePresence Multiway [requires Cisco TelePresence Video Communication Server (Cisco VCS) and a Cisco TelePresence MCU] ● Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS) ● Switched conferencing (SVC) |
MultiSite Features (Embedded Multipoint) (Optional upgrade) | ● Adaptive SIP/H.323 MultiSite; resolution up to 720p30 ◦ 3-way resolution up to 720p30 ◦ 4-way resolution up to 576p30 ● Full individual audio and video transcoding ● Individual layouts in MultiSite continuous presence ● H.323/SIP/VoIP in the same conference ● Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p15 ● Best Impression (automatic continuous presence layouts) ● H.264, encryption and dual stream from any site ● IP downspeeding ● Participants can be added by dialing in or host can dial out ● Conference rates up to 6 Mbps |
Protocols | ● H.323 ● SIP ● ISDN (requires Cisco TelePresence ISDN Link) |
Embedded Encryption | ● H.323 and SIP point-to-point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange ● Supported in dual stream |
IP Network Features | ● DNS lookup for service configuration ● Differentiated services (quality of service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual Tone Multi-frequency (DTMF) tones in H.323 ● RFC 4733 DTMF tones in SIP ● Date and time support using Network Time Protocol (NTP) ● Packet loss-based down speeding ● Uniform resource identifier (URI) dialing ● TCP/IP ● DHCP ● 802.1x network authentication ● 802.1Q Virtual LAN ● 802.1p (QoS and class of service [QoS]) ● ClearPath |
Cisco Unified Communications Manager (requires Cisco Unified Communications Manager Version 8.6 or later) | ● Native registration with Cisco Unified Communications Manager ● Basic Cisco Unified Communications Manager provisioning ● Software upgrade from Cisco Unified Communications Manager ● Cisco Discovery Protocol and DHCP option 150 support ● Basic telephony features such as hold/resume/transfer and Corporate Directory lookup |
Cisco Video Communication Server | ● Recommend latest software |
IPv6 Network Support | ● Single call stack support for both H323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ ● Support for both Static and Automatic IP configuration (stateless address auto configuration) |
Security Features | ● Management using HTTPS and SSH ● IP administration password ● Menu administration password ● Disable IP services ● Network settings protection |
Network Interfaces | ● One LAN and Ethernet (RJ-45) 10/100/1000 Mbit |
Other Interfaces | ● Two USB ports can be used for serial control |
System Management | ● Support for the Cisco TelePresence Management Suite ● Total management using embedded SNMP, Telnet, SSH, XML, SOAP ● Remote software upload: using web server, secure copy (SCP), HTTP, HTTPS ● Cisco TelePresence Touch 10 (optional) ● Remote control and on-screen menu system |
Directory Services | ● Support for local directories (My Contacts) ● Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite) ● Unlimited number for corporate directory (through Cisco TelePresence Management Suite) ● Received calls with date and time ● Placed calls with date and time ● Missed calls with date and time |
Power | ● Auto-sensing power supply ● 100 - 240 VAC, 50/60 Hz ● Maximum 40 watts for codec and main camera |
Operating Temperature and Humidity | ● 0°C to 40°C (32°F to 104°F) ambient temperature ● 10% to 90% Relative Humidity (RH) |
Storage and Transport Temperature | ● -20°C to 60°C (-4°F to 140°F) at RH 10% - 90% (non -condensing) |
SX20 Codec Dimensions | ● Width: 11.8 inches (30.0 cm) ● Height: 1.4 inches (3.4 cm) ● Depth: 7.1 inches (18.0 cm) ● Weight: 3.1 pounds (1.4 kg) |
