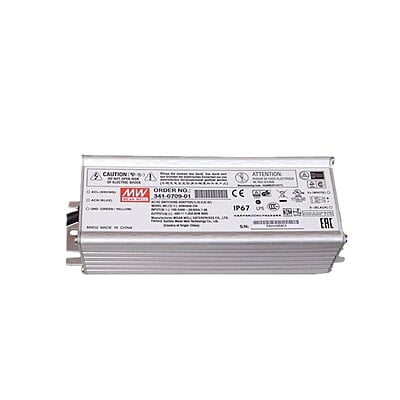

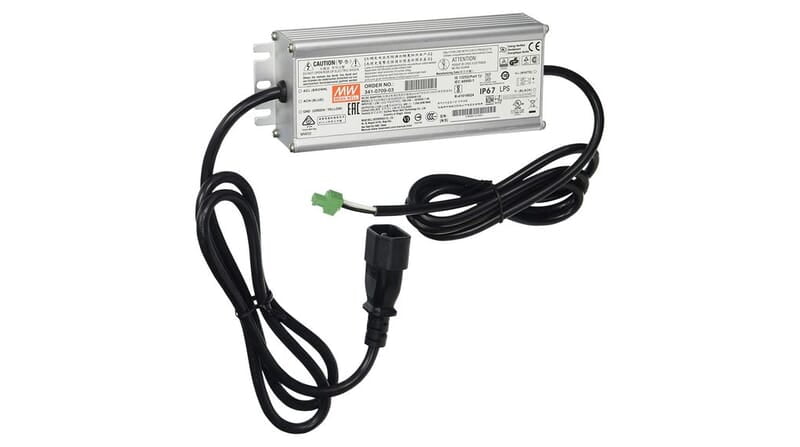

AIR-PWRADPT-1530=

Output

DC Voltage

48V

Rated Current

1.25A

Current Range

0 ~ 1.25A

Rated Power (Max.)

60W

Ripple and Noise (Max)

240mVp-p
380mVp-p for Japan version only

Voltage Tolerance

±3.5%

Line Regulation

±1.0%

Load Regulation

±2.5%

Setup, Rise Time

600ms, 30ms / 230VAC

600ms, 30ms / 115VAC at full load

Hold Up Time (Typ.)

50ms / 230VAC

15ms / 115VAC at full load

Input

Voltage Range

100 ~ 264VAC

90 ~ 264VAC for Japan version only

Frequency Range

47 ~ 63Hz

Efficiency (Typ.)

92%

AC Current

1.4A / 115VAC

1A / 230VAC

Inrush Current (Max.)

65A / 230VAC

Leakage Current (Max.)

0.75mA / 240VAC

Protection

Overload

105 ~ 150% rated output power
Protection type—Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

50.4 ~ 64.8V
Protection type—Shut down o/p voltage, re-power on to recover

Over Temperature

RTH2 > 70°C
Protection type—Shut down o/p voltage, re-power on to recover

Environment

Working Temp.

-30 ~ + 60°C (Refer to output load derating curve)

Working Humidity

0% - 100% RH condensing

Intrusion Protection

IP67

Storage Temp.

-30 ~ +85°C

Temp. Coefficient

± 0.03% / °C (0 ~ 50°C)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

UV Rating (cable)

per ASTM G155-05 Cycle 1

Safety and EMC

Safety Standards

UL/cUL60950-1, TUV EN60950-1, CCC GB4943, S-mark (Argentina), EAC (Russia), NOM (Mexico), SAA (Australia), KC (Korea), BMSI (Taiwan)

PSE (Japan) for AIR-PWRADPT2-1530= only

Withstand Voltage

I/P-O/P:3KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMI Conduction and Radiation

EN55022 class B, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254 class B

Harmonic Current

Compliance to EN61000-3-2,3, GB17625.1

EMS Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
