AIR-CAP1602I-E-K9

AIR-CAP1602I-E-K9Specification

Product Description

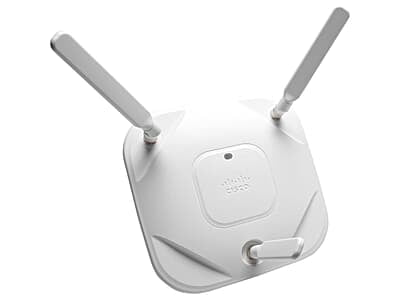

Cisco Catalyst 1600 Series Access Points with External antennas

Devide Type

Wireless Access point

Regulatory domain

A regulatory domain

Software

· Cisco Unified Wireless Network Software (available in Q4CY12)

· Cisco IOS ® Software Release (available in Q4CY12)

Data rates supported

● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps

● 802.11n on 2.4 GHz: up to 300Mbps

Maximum number of nonoverlapping channels

5 GHz
● 802.11a:
◦ 20 MHz: 24
● 802.11n:
◦ 20 MHz: 24
◦ 40 MHz:9

2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3

Antenna (purchase separately)

· Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

· Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

Interfaces

· 10/100/1000BASE-T autosensing (RJ-45)

· Management console port (RJ-45)

System memory

· 256 MB DRAM

· 32 MB flash

Power consumption (power supply purchase separately)

15.4 Watts (Standard 802.3af POE)

IEEE standards

IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

Security

● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● 802.1X

● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types

● EAP-Transport Layer Security (TLS)
● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
● Protected EAP (PEAP) v0 or EAP-MSCHAPv2

● EAP-Flexible Authentication via Secure Tunneling (FAST)
● PEAP v1 or EAP-Generic Token Card (GTC)
● EAP-Subscriber Identity Module (SIM)

Environmental

● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
● Nonoperating (storage) Altitude Test: -25˚C, 15,000 ft.
● Operating temperature: -4 to 122°F (-20 to 50°C)

● Operating humidity: 10 to 90 % (noncondensing)
● Operating Altitude Test: -40˚C, 9843 ft.
