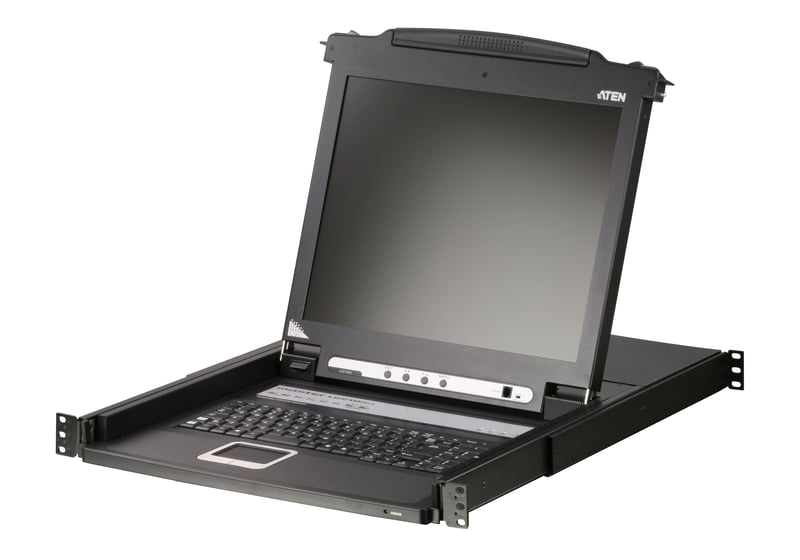

Aten CL1008
Non-returnable
4,500.00SAR 5,760.00SAR
Tags:

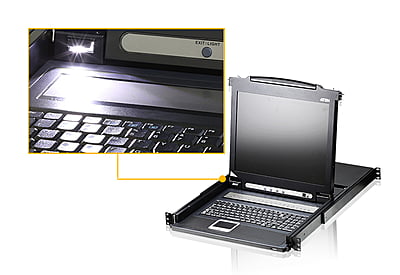

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- Daisy-chain up to 15 additional units - control up to 128 computers
- Auto Scan feature for monitoring user-selected computers
Choose Quantity
Product Details
| Computer Connections | |
| Direct | 8 |
| Maximum | 128 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |
| KVM Ports | 8 x SPHD Female (Yellow) |
| Daisy Chain Ports | 1 x DB-25 Male |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
| Switches | |
| Port Selection | 8 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton |
| LEDs | |
| Online | 8 (Orange) |
| Selected | 8 (Green) |
| Power | 1 (Dark Green) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | |
| LCD Module | 17" TFT-LCD |
| Resolution | 1280 × 1024 @ 75 Hz |
| Response time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.264 mm x 0.264 mm |
| Support Color | 16.77M colors |
| Contrast Ratio | 1000 : 1 |
| Luminance | 250 cd/m² |
| Video | |
| Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
| Scan Interval | 1-255 seconds |
| Emulation | |
| Keyboard / Mouse | PS/2, USB(via 2L-520xUP cables) |
| Maximum Input Power Rating | 100-240V AC, 50-60 Hz, 1A |
| Power Consumption | AC110V:21.3W:100BTU AC220V:23.6W:111BTU |
| Environmental | |
| Operating Temperature | 0-40˚C |
| Storage Temperature | -20-60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal + Plastic |
| Rail Type | Single Rail |
| Weight | 13.34 kg ( 29.38 lb ) |
| Dimensions (L x W x H) | 48.00 x 64.02 x 4.40 cm (18.9 x 25.2 x 1.73 in.) |
