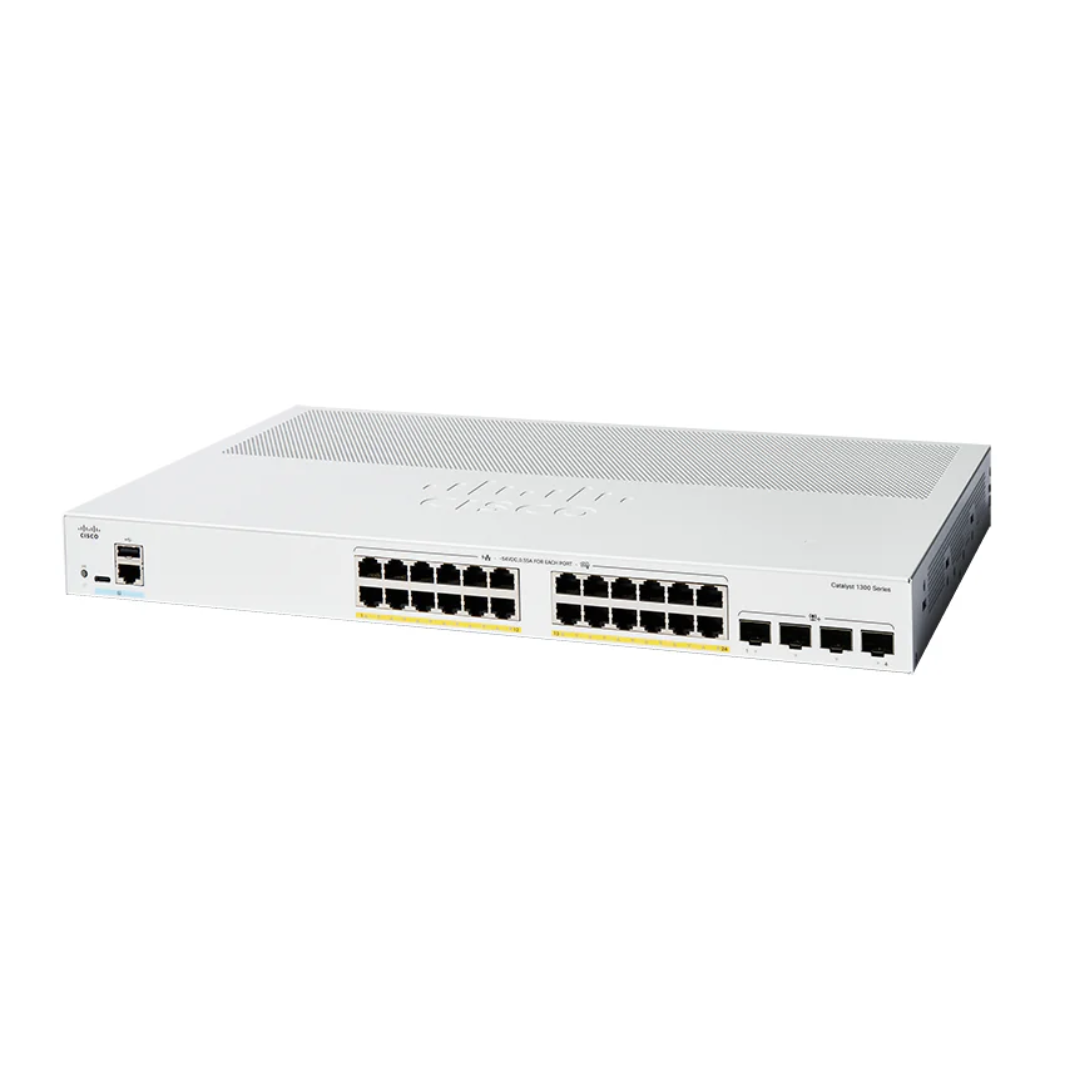

C1300-24P-4X
The C1300-24P-4X is your ultimate solution for next-generation networking. Designed with a focus on performance, reliability, and adaptability, this gigabit Ethernet switch is ideal for businesses of all sizes. Its powerful combination of 24 PoE+ ports and 4 high-speed SFP+ uplink ports ensures smooth and efficient connectivity, even in high-demand environments. Whether you're managing a growing office, deploying IoT devices, or establishing a secure enterprise network, the C1300-24P-4X delivers unparalleled results.
Key Features and Benefits
1. Power Over Ethernet Plus (PoE+) Support
With 24 PoE+ (802.3at) enabled ports, the C1300-24P-4X supports up to 30W per port, offering a combined power budget of 370W. This feature eliminates the need for additional power supplies by delivering both data and power over a single cable. Perfect for powering:
- IP cameras
- Wireless access points
- VoIP phones
2. High-Speed Uplink Ports
Four SFP+ uplink ports provide 10Gbps connectivity for efficient data transfer between switches or to core network infrastructure. This ensures low-latency connections, enabling smooth operation for bandwidth-intensive applications like video streaming, data backups, and cloud services.
3. Advanced Layer 2 and Layer 3 Features
Equipped with robust Layer 2 switching and Layer 3 static routing capabilities, the switch ensures optimal traffic management. These advanced features enhance network segmentation, routing efficiency, and overall performance.
4. Intelligent Network Management
The C1300-24P-4X supports multiple management options, including a user-friendly web interface, CLI, SNMP, and RMON. These tools simplify configuration, monitoring, and troubleshooting, allowing administrators to optimize their networks with ease.
5. Enhanced Security Protocols
Stay protected with advanced security features such as:
- Port-based VLANs
- 802.1X authentication
- Access control lists (ACLs)
These protocols safeguard your network against unauthorized access and cyber threats.
6. Energy-Efficient Design
Engineered with energy-saving technologies like IEEE 802.3az Energy Efficient Ethernet (EEE), the switch automatically reduces power consumption during low traffic periods. This not only cuts operational costs but also aligns with sustainability goals.
7. Compact and Durable Construction
The rack-mountable design ensures seamless integration into server rooms or equipment racks, while its durable build provides long-lasting reliability in demanding environments.
Use Cases
The C1300-24P-4X excels across a variety of applications:
- Small to Medium Enterprises (SMEs): Cost-effective and scalable for growing businesses.
- Smart Buildings: Powers IP surveillance systems and IoT devices seamlessly.
- Education Institutions: Enables robust network connectivity for e-learning environments.
- Retail Chains: Supports POS systems, Wi-Fi access points, and security cameras.
Specifications Table
| Attribute | Details |
|---|---|
| Model Number | C1300-24P-4X |
| Total Ports | 24 Gigabit Ethernet Ports, 4 SFP+ Ports |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Maximum PoE Budget | 370W |
| Switching Capacity | 128 Gbps |
| Packet Forwarding | 95.23 Mpps |
| Management Options | Web UI, CLI, SNMP, RMON |
| Layer Support | Layer 2 and Layer 3 |
| VLAN Support | Yes (Port-based, Protocol-based) |
| Security Features | 802.1X, ACL, Storm Control |
| Power Efficiency | Energy Efficient Ethernet (EEE) |
| Dimensions | 440 x 260 x 44 mm |
| Mounting Options | Rack-Mountable |
| Warranty | Limited Lifetime Warranty |
Unique Selling Propositions (USPs)
1. Seamless Integration:
The C1300-24P-4X is designed to integrate effortlessly with existing network infrastructure. Its flexible configuration options and advanced management tools make it a perfect fit for IT administrators.
2. Exceptional Power Budget:
With a 370W PoE budget, the switch is ideal for supporting high-demand devices without requiring additional power sources.
3. Future-Ready Connectivity:
Equipped with 10Gbps SFP+ ports, the switch supports future scalability, ensuring your network can handle growing bandwidth needs.
4. Eco-Conscious Technology:
Enjoy powerful networking while reducing your environmental footprint. The energy-efficient design minimizes power consumption without compromising performance.
Why Choose the C1300-24P-4X?
Investing in the C1300-24P-4X means equipping your business with a reliable, versatile, and future-proof networking solution. Whether you need robust PoE support for connected devices, lightning-fast uplinks, or enhanced security for sensitive data, this switch has it all. Its compact, durable construction and easy manageability make it an excellent choice for IT professionals looking to maximize efficiency while minimizing operational complexity.
Conclusion
The C1300-24P-4X is a game-changing network switch built for modern businesses and institutions. Combining high performance, advanced features, and ease of use, it provides the scalability and reliability necessary to support demanding applications. Upgrade your network today and experience the difference the C1300-24P-4X brings to your operations.
Make the smart choice for your networking needs. The C1300-24P-4X is ready to deliver unmatched performance and flexibility, ensuring your organization stays connected and ahead of the curve
