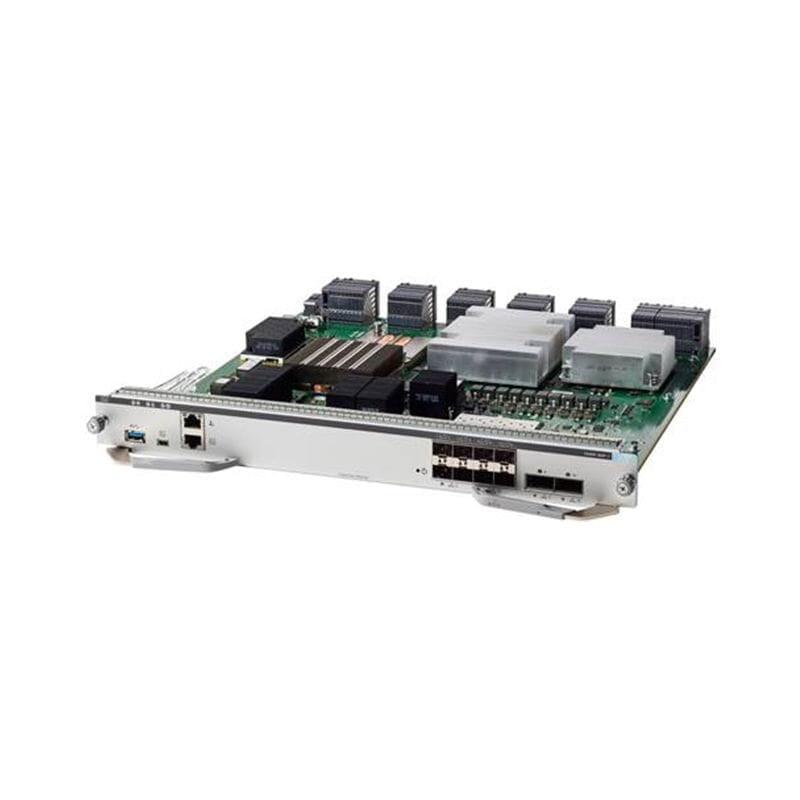

C9400-SUP-1XL
Table 1 shows the Quick Specs.
Product Code | C9400-SUP-1XL |
Centralized wired capacity | Up to 1.44 Tbps |
Per-slot switching Capacity | 240 Gbps – C9404R 120 Gbps – C9407R 80 Gbps – C9410R |
Total number of MAC addresses | Up to 64,000 |
Total number of IPv4 routes (ARP plus learned routes) | Up to 144,000 |
IPv4 routing entries | Up to 144,00 |
IPv6 routing entries | Up to 56,000 |
Multicast routes | Layer 2 up to 16,000 Layer 3 up to 32,000 |
Physical specifications
| (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lb (4.5 kg) |
Product Details
Cisco C9400 Supervisor Engine Modules provides these highlights:
• The Cisco Unified Access Data Plane (UADP) 2.0 ASIC is ready for next-generation technologies with its programmable pipeline, microengine capabilities, and template-based configurable allocation of Layer 2, Layer 3, forwarding, Access Control List (ACL), and Quality of Service (QoS) entries
• Intel 2.4-GHz x86 with up to 960 GB of SATA SSD local storage for container-based application hosting
• Up to 1.44 Tbps wired switching capacity (IPv4) with 900 Mpps of throughput
• Up to two nonblocking 25 Gigabit Ethernet uplinks on the C9400-SUP-1XL-Y supervisor engine
• Up to two nonblocking 40 Gigabit Ethernet uplinks (Quad Small Form-Factor Pluggable [QSFP]) and up to eight nonblocking 10 Gigabit Ethernet uplinks (SFP+)
• SFP support on uplinks to offer flexibility for up to eight Gigabit Ethernet ports
• 384 ports of nonblocking 10/100/1000 RJ-45 ports
• 392 ports of nonblocking 1 Gigabit Ethernet Fiber (SFP) ports
• 200 ports of 10 Gigabit Ethernet SFP+ ports (eight uplinks plus 192 line card ports)
• Cisco UPOE®+ (90 W) capabilities on 263 ports simultaneously
