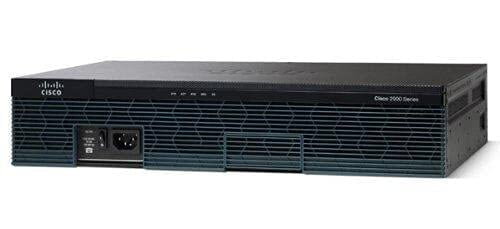

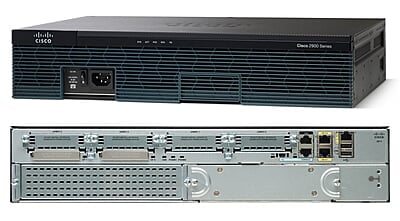

CISCO2911-V/K9
CISCO2911-V/K9 Overview
The Cisco 2911 router, supporting voice module, is designed for medium-sized branch. CISCO2911-V/K9 includes Voice bundle.
Table 1 shows the Quick Specs of the Cisco 2911-V/K9.
Product Code | Cisco 2911-V/K9 |
Voice Bundle | · High-density-packet voice DSP module, optimized for voice and video support · Standards-certified VoiceXML browser services · Cisco Unified Border Element capabilities · Cisco Unity Express voicemail support · Support for Cisco Communications Manager Express and Survivable · Remote Site Telephony |
Rack Units | 2RU |
Interfaces | 3 integrated 10/100/1000 Ethernet ports (RJ-45 only) |
Expansion Slot(s) | 1 service module slot 1 Internal Service Module slot 2 onboard digital signal processor (DSP) slots 4 enhanced high-speed WAN interface card slots |
RAM | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Dimensions | 43.8 cm x 30.5 cm x 8.9 cm |
CISCO2911-V/K9 Specification
CISCO2911-V/K9 Specifications | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | CISCO2911-V/K9 |
Product Type | Router |
Form Factor | External - modular - 2U |
Dimensions (WxDxH) | 43.8 cm x 30.5 cm x 8.9 cm |
Weight | 8.2 kg |
DRAM Memory | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | SNMP, RMON |
Digital Ports Qty | 16 |
Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED) |
Compliant Standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
Power | AC 120/230 V ( 50/60 Hz ) |
