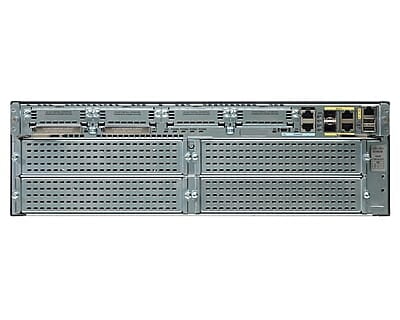

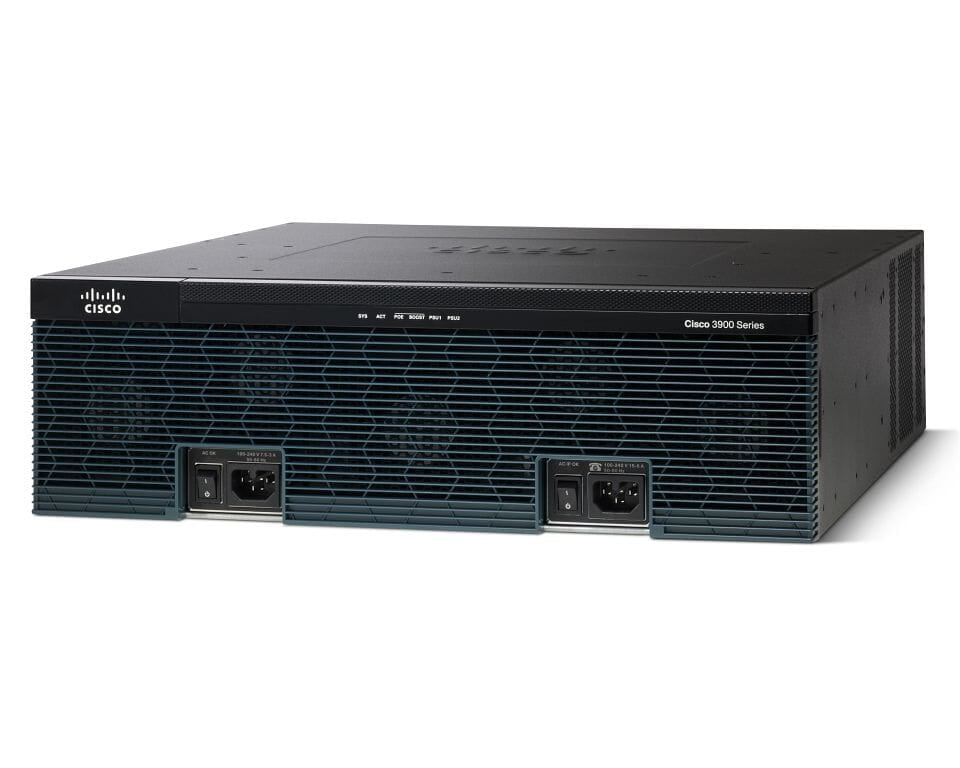

CISCO3925-V/K9

CISCO3925-V/K9 Specification

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CISCO3925-V/K9

Product Type

Router

Form Factor

Desktop - modular - 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair

Queuing (CBWFQ), Weighted Random Early Detection (WRED)

Compliant Standards

IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Type

Voice / fax module

Digital Ports Qty

64

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Router Interfaces

3 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Management : 1 x console - RJ-45

Management : 1 x console - mini-USB Type B

Serial : 1 x auxiliary - RJ-45

USB : 2 x 4 PIN USB Type A

2 x SFP (mini-GBIC)

Expansion Slots Total (Free)

4 ( 4 ) x HWIC

3 ( 2 ) x PVDM

2 ( 1 ) x CompactFlash Card

1 ( 1 ) x Expansion Slot

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Width

47.6 cm

Depth

43.8 cm

Height

8.9 cm

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A,

CS-03, AS/NZS 3548, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065,

BSMI CNS 13438

Software Included

Cisco IOS Unified Communications
