CL5808N
SAR5,750.00
Out of stock
Tags:

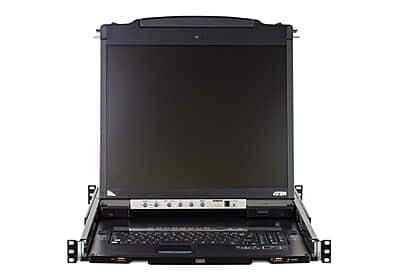

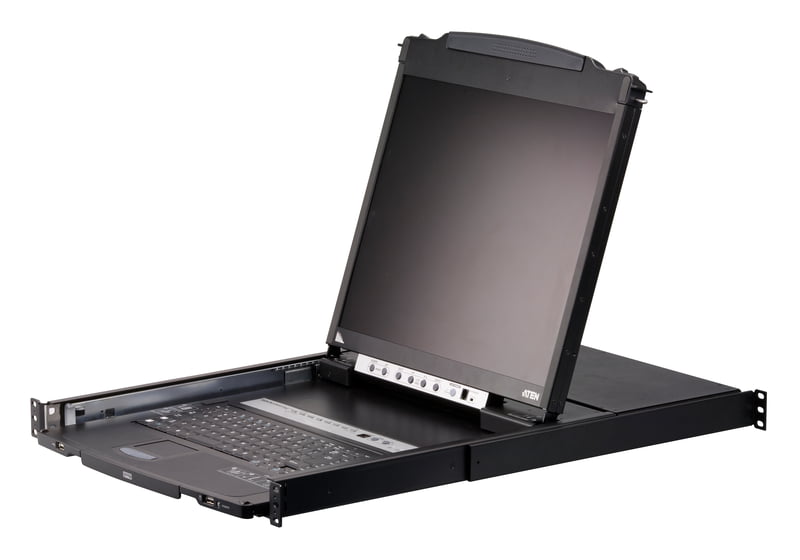

The CL5808 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. The keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down pushbuttons located on the monitor module.
Product Details
| Function | CL5808N |
| Computer Connections | |
| Direct | 8 |
| Maximum | 256 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |
| KVM Ports | 8 x SPHD Female (Yellow) |
| Daisy Chain Ports | 1 x DB-25 Male |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
| External Console Ports | 1 x SPHD Male (Yellow) |
| External Mouse Port | 1 x USB Type A Female (Front) |
| USB Port | 1 x USB Type A Female (Front) |
| Switches | |
| Port Selection | 2 x Pushbutton (LCD) 8 x Pushbutton (Keyboard) |
| Station Selection | 2 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton |
| LEDs | |
| Online | 8 (Orange) |
| Selected | 8 (Green) |
| Station ID | 2 x 7-segment LED Display (Orange) |
| Power | 1 (Dark Green) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | |
| LCD Module | 19" TFT-LCD |
| Resolution | 1280 x 1024 @ 75 Hz |
| Response time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 mm x 0.294 mm |
| Support Color | 16.77M colors |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
| Video | |
| Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
| Scan Interval | 1–255 seconds |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Maximum Input Power Rating | 100–240V AC, 50/60Hz, 1A |
| Power Consumption | AC110V:25.2W:129BTU AC220V:27.2W:138BTU |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal + Plastic |
| Rail Type | Dual Rail |
| Weight | 14.48 kg ( 31.89 lb ) |
| Dimensions (L x W x H) | 48.00 x 68.04 x 4.40 cm (18.9 x 26.79 x 1.73 in.) |
