CTS-SX80CODEC
Non-returnable
SAR0.00
Tags:

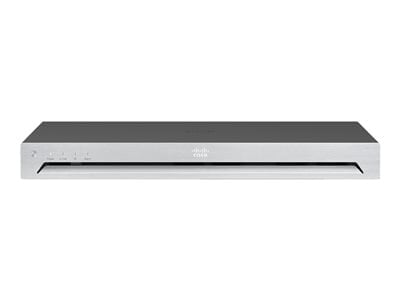

The SX80 Codec is a powerful audio and video engine. It incorporates high-definition video collaboration applications into large meeting rooms, boardrooms, and purpose-built or vertical application rooms such as training, briefing, and demo rooms, and auditoriums.
Choose Quantity
Product Details
Miscellaneous
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 60950-1, FCC CFR47 Part 15 B, CAN/CSA-C22.2 No. 60950-1 |
Networking
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, NTP, DHCP, DNS |
| Features | Flow control, LDAP support, VLAN support, DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
General
| VoIP Protocols | H.323, SIP |
| Voice Codecs | G.711, G.722, G.729ab, G.722.1 |
| Video Codecs | H.261, H.263, H.263+, H.264, H.265 |
| Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
| Security | H.235 v3 |
| Network Protocols | HTTP, HTTPS |
| Width | 17.4 in |
| Depth | 12.2 in |
| Height | 1.7 in |
| Weight | 8.05 lbs |
Modem
| Max Transfer Rate | 10 Mbps |
| Digital Signaling Protocol | H.323, H.239, H.460, H.245 |
| Data Compression Protocol | H.350, H.235 ver 3 |
| Features | Auto gain control, echo cancellation |
Video Output
| Type | Codec board - rack-mountable |
| Max External Resolution | 1920 x 1080 |
| Supported Display Graphics | HDTV (1920x1080), HD (1280 x 720) |
| Digital Video Standard | Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI) |
Expansion / Connectivity
| Interfaces | 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 1 x display / video - composite video/S-video input - BNC x 2 ¦ 2 x network - RJ-45 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 8 x microphone - input ¦ 4 x audio - balanced input ¦ 6 x audio - balanced output ¦ 2 x management - RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x display / video - DVI-Analog/Digital input - 24+5 pin combined DVI ¦ 1 x display / video - DVI-Analog/Digital output - 24+5 pin combined DVI |
Power
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V (50/60 Hz) |
