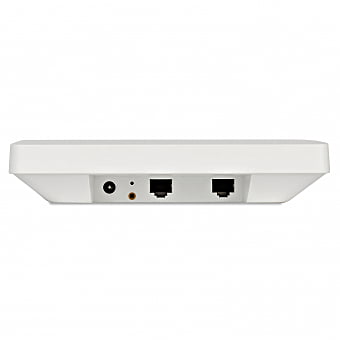

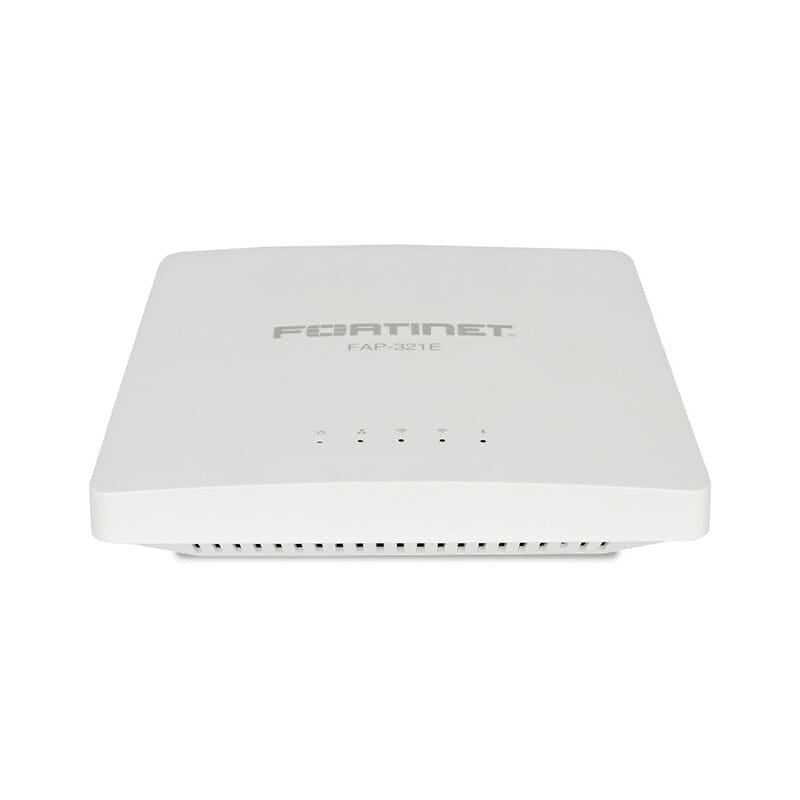

FAP-321E

FAP-321E specification

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

1300 Mbps

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2

Routing Protocol

MLD

Frequency Band

2.4 GHz, 5 GHz

Capacity

Maximum number of configured SSIDs: 16

Features

Wireless Intrusion Detection System (WIDS), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, iBeacon technology, packet aggregation A-MPDU, packet aggregation A-MSDU, spectrum analyzer, Packet Sniffer Mode, MIMO Power Save, Short Guard Interval, 3x3:3 MU-MIMO technology, security slot (Kensington security lock compatible), Bluetooth (BLE) clients support

Encryption Algorithm

TLS, PEAP, TTLS, WPA, WPA2, WEP, EAP-SIM, EAP-AKA, WPA3, EAP-FAST

Authentication Method

MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-SIM

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2

General

Device Type

Wireless access point

Ruggedized Design

Indoor

Width

7.1 in

Depth

7.1 in

Height

1.5 in

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x management (RS-232) - RJ-45

Environmental Parameters

Min Operating Temperature

14 °F

Max Operating Temperature

113 °F

Humidity Range Operating

10 - 90% (non-condensing)

Power

Power Over Ethernet (PoE) Supported

PoE+

Power Consumption Operational

16.8 Watt

Antenna

Antenna

Internal

Antenna Qty

6
