FPXLC
SAR12.00
Out of stock
Tags:

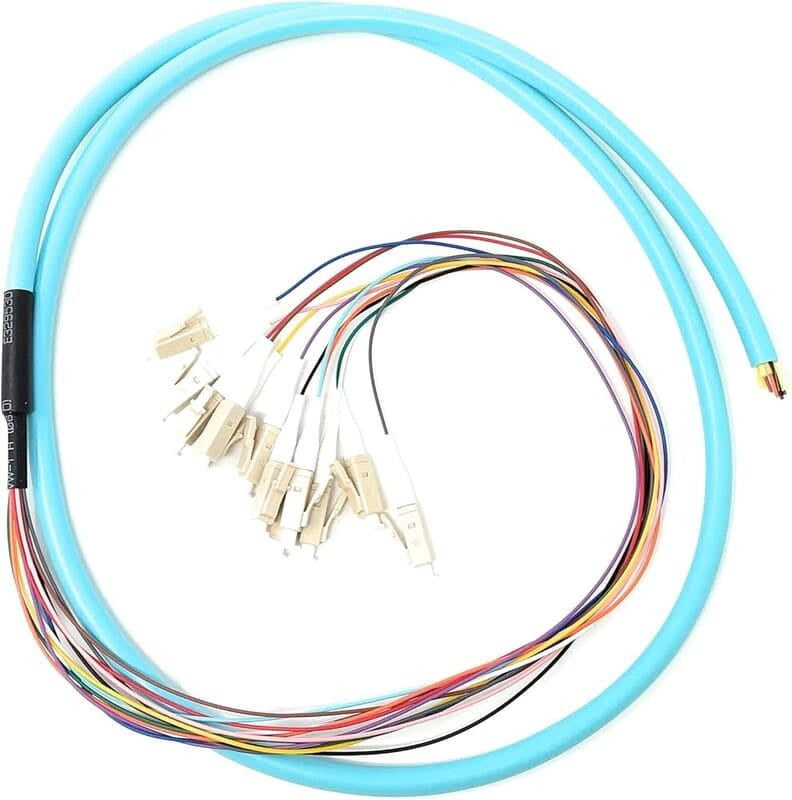

FINOSEL Fiber Pigtail LC-50/125 MICRON,LSZH 1.5 MTR
Product Details
A Fiber Pigtail, LC-50/125 is a type of fiber optic cable specifically designed for short-distance, reliable connections within telecommunication and data center applications. Here's a breakdown of its key aspects:
1. Connector type:
- LC (Lucent Connector): This is a small, rectangular connector commonly used in fiber optic networks due to its compact size and ease of use.
2. Fiber type:
- 50/125 microns: This refers to the core and cladding diameters of the fiber optic cable.
- Core: The center of the cable, where light travels (50 microns in this case).
- Cladding: The outer layer surrounding the core (125 microns in this case).
- This combination is typically associated with multimode fiber, which is suitable for shorter distances (up to 500 meters) and lower bandwidth applications compared to single-mode fiber.
3. Pigtail design:
- One end has a pre-terminated LC connector, ready for immediate connection to an LC port on a switch, router, or other networking equipment.
- The other end is typically bare fiber, requiring termination with a connector (e.g., splicing) for connection to another device or cable.
