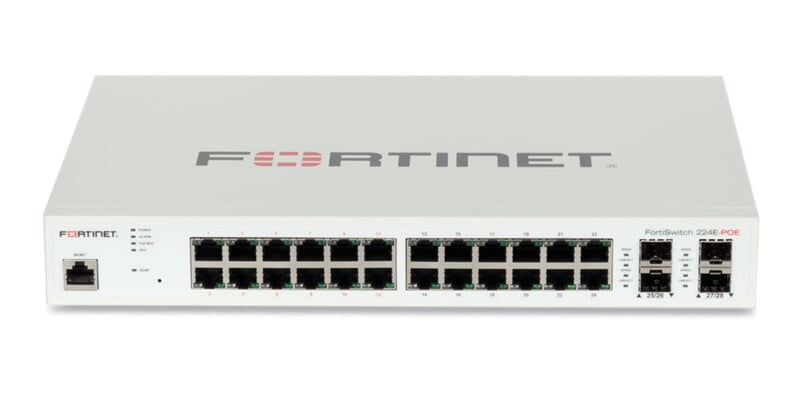

FS-224E-POE

FS-224E-POE specification

Hardware Specifications

Total Network Interfaces

24x GE RJ45 ports and 4x GE SFP ports

Dedicated Management 10/100 Port

1

RJ-45 Serial Console Port

1

Form Factor

1 RU Rack Mount

Power over Ethernet (PoE) Ports

12 (802.3af/802.3at)

PoE Power Budget

180 W

Mean Time Between Failures

> 10 years

System Specifications

Switching Capacity (Duplex)

56 Gbps

Packets Per Second (Duplex)

83 Mpps

MAC Address Storage

16 K

Network Latency

< 1µs

VLANs Supported

4 K

Link Aggregation Group Size

8

Total Link Aggregation Groups

Up to number of ports

Packet Buffers

1.5 MB

DRAM

512 MB

FLASH

128 MB

Dimensions

Height x Depth x Width (inches)

1.73 x 9 x 12.99

Height x Depth x Width (mm)

44 x 230 x 330

Power

Power Required

100–240V AC, 50–60 Hz

Power Supply

AC Built in

Redundant Power

Optional FRPS-740

Power Consumption (Average / Maximum)

220.18 W / 223.57 W

Heat Dissipation

74.29554 BTU/h

Environment

Operating Temperature

32–122°F (0–50°C)

Storage Temperature

-4–158°F (-20–70°C)

Humidity

10–90% non-condensing
