GLC-ZX-SMD=
Non-returnable
SAR2,500.00
Out of stock
Tags:
1000BASE-ZX SFP transceiver module. SMF. 1550nm. DOM

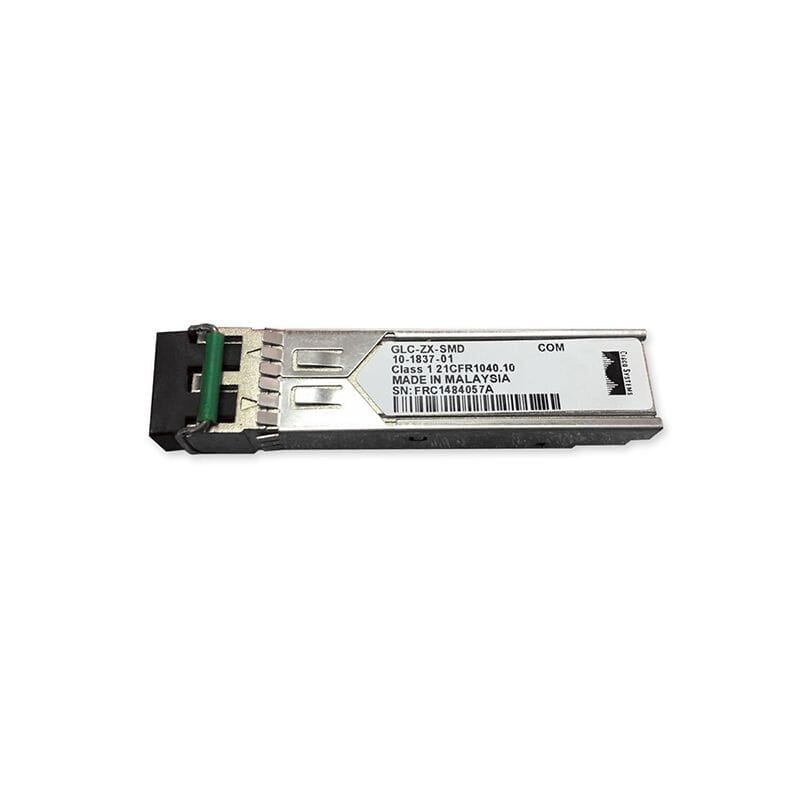

Cisco GLC-ZX-SMD is a 1000BASE-ZX SFP for Long-Reach Single-Mode Fiber. The 1000BASE-ZX SFP operates on standard single-mode fiber-optic link spans of up to approximately 70 km in length. The SFP provides an optical link budget of 21 dB, but the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.
Product Details
SFP Port Cabling Specifications | |||||
Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
62.5 | 200 (OM1) | 275 (902 ft) | |||
50 | 400 (400/400) | 500 (1,640 ft) | |||
50 | 500 (OM2) | 550 (1,804 ft) | |||
50 | 2000 (OM3) | 1000 (3281 ft) | |||
1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
50 | 400 | 550 (1,804 ft) | |||
50 | 500 | 550 (1,804 ft) | |||
SMF | -** | - | 10,000 (32,821 ft) | ||
1000BASE-EX | 1310 | SMF | -** | - | 40,000 (131,234 ft) |
1000BASE-ZX (GLC-ZX-SMD) | 1550 | SMF | - | - | Approximately 70 km depending on link loss |
1000BASE-BX-U | 1310 | SMF | -** | - | 10,000 (32,821 ft) |
1000BASE-BX-D | 1490 | SMF | -** | - | 10,000 (32,821 ft) |
