GP12260
Non-returnable
250.00SAR
Tags:

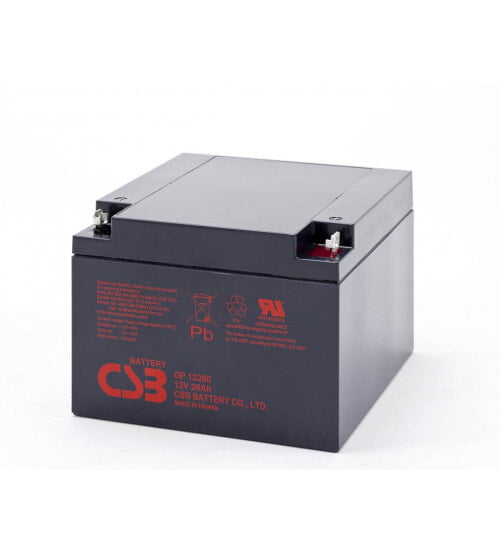

CSB Battery GP 12260 12V 26AH 12Volt/26 Amp Hour Sealed Lead Acid Battery with Nut & Bolt terminals
Choose Quantity
Product Details
| Specification |
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 26 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight | Approx. 8.45 kg. (18.62 lbs.) |
| Maximum Discharge current | 350 A (5sec.) |
| Internal Resistance | Approx. 9.9 mΩ |
| Operating Temperature Range | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range | 25°C ± 3°C (77°F ± 5°F) |
| Float charging voltage | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit | 7.8 A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal | B1/B3/B3B-L terminal or Recessed type to accept M5 bolt |
| Container Material | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
