IG1008S2P
SAR350.00
Out of stock
Tags:

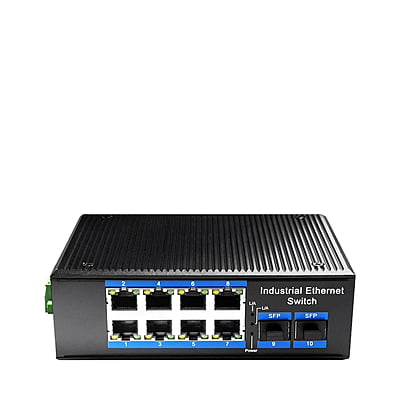

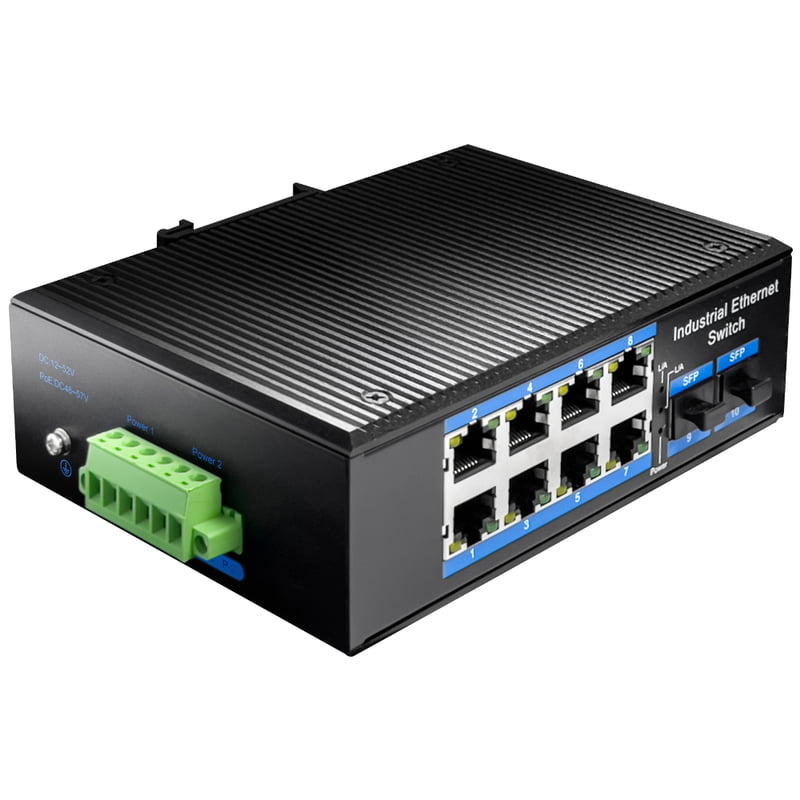

The Cudy IG1008S2P is an 8-port Gigabit Industrial Unmanaged PoE Switch designed for harsh environments and demanding network applications. Here's a breakdown of its key features:
High-Performance Connectivity:
- Equipped with 8 Gigabit RJ45 ports for connecting devices at ultra-fast speeds of up to 1 Gbps (1000 Mbps).
- Offers 2 additional SFP ports for fiber optic connections, ideal for longer distances and high-bandwidth applications.
Power Over Ethernet (PoE) Support:
- All 8 RJ45 ports support PoE (Power over Ethernet) according to the 802.3at/af standard, delivering power and data over a single cable.
- This eliminates the need for separate power outlets for PoE-compatible devices like IP cameras, VoIP phones, and wireless access points, simplifying installation and reducing cabling clutter.
Industrial Grade Design:
- Built with a rugged metal housing for enhanced durability, making it suitable for harsh environments with extreme temperatures ranging from -40°C to 85°C.
- Supports a wide range of DC power inputs (12V to 52V) for operational flexibility.
Additional Features:
- Supports auto-MDI/MDI-X for seamless cable connections without the need for crossover cables.
- Offers plug-and-play functionality, requiring no complex configuration.
- DIN-rail mountable design allows for easy and space-saving installation in industrial cabinets or racks.
Product Details
Specifications
Model | IG1008S2 |
Interface | 8-Port RJ-45 auto-MDI / MDI-X |
Performance Specification | Bandwidth: 20Gbps Packet Buffer Memory:2Mbit Packet Forwarding Rate:15Mpps MAC Address Table: 8K |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |

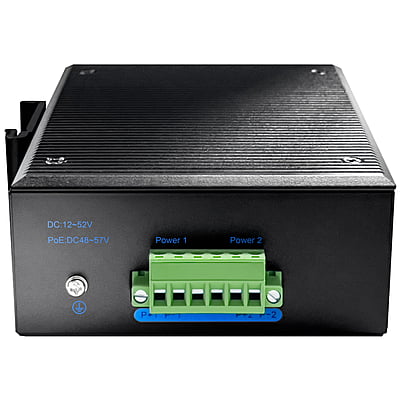

Power Input | 12 to 52V DC redundant power ( Note: This product does not include a power adapter.) |
Power Consumption | < 3 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
Network cables | 10BASE-T: Cat3, 4, 5 UTP (≤100 meter) 100BASE-TX: Cat 5 or later UTP (≤10meter) 1000BASE-TX: Cat 6 or later UTP (≤100 meter) |
MTBF | >300,000hours |
Dimensions (W x D x H) | 143.7 x 103 x 44.2 mm |
Weight | Product Weight: 0.56KG Packing Weight: 0.66KG |
Working Environment | Working temperature: -40~85℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
