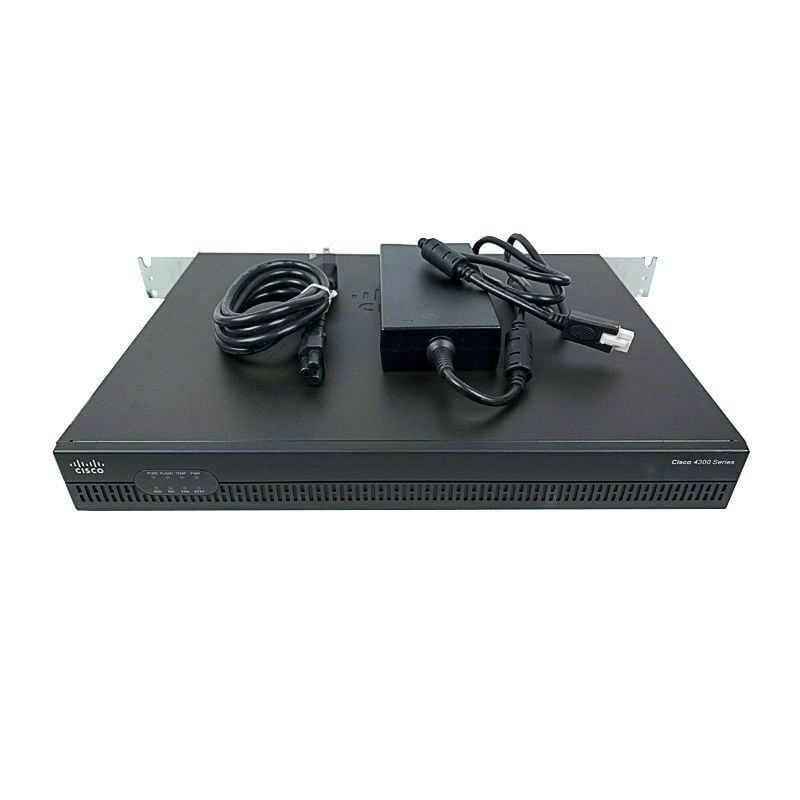

ISR4321-SEC/K9

Cisco ISR4321-SEC/K9 Specification

Type

Cisco ISR4321/K9 with Security Bundle

Aggregate Throughput

50 Mbps to 100 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

8 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

8 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port - RJ45 (up to 115.2 kbps)

1

Serial auxiliary port - RJ45

(up to 115.2 kbps)

1

Power-supply options

External: AC and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

1.5 to 0.6A

AC input surge current

90 A peak and less than 3 Arms per half cycle

Typical power (no modules) (watts)

36

Maximum power with AC power supply (watts)

125

Maximum power with PoE power supply (platform only) (watts)

260

Maximum endpoint PoE power available from PoE power supply (watts)
