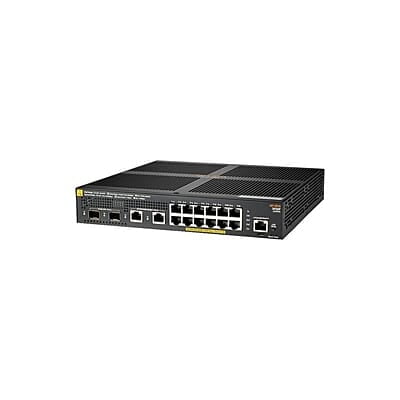

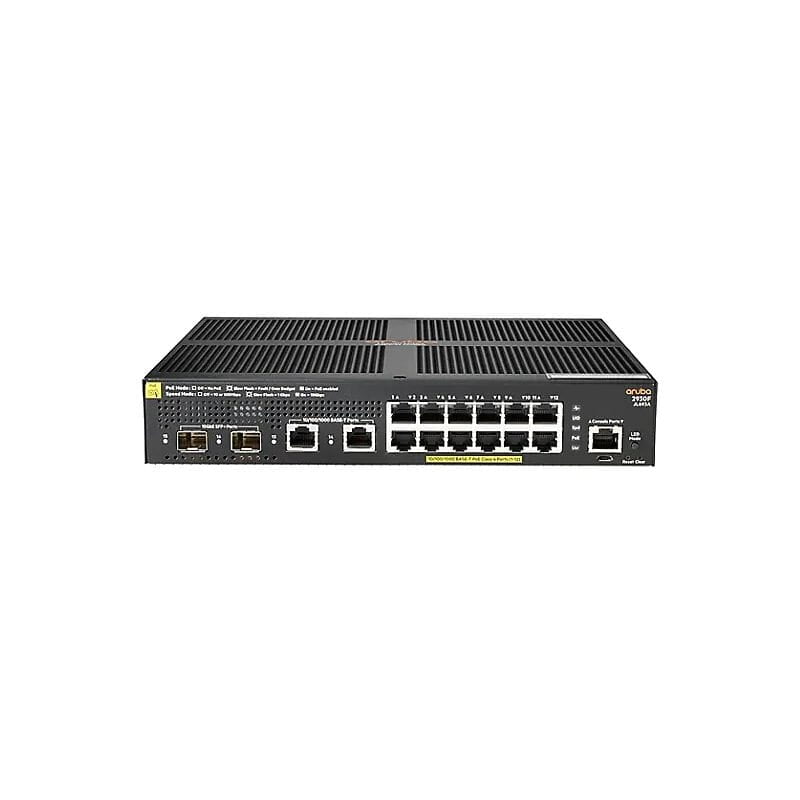

JL693A
JL693A Specification | |
General | |
Device Type | Switch - 12 ports - L3 - managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 139 W |
Performance | Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs |
Capacity | Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 |
MAC Address Table Size | 32K entries |
Routing Protocol | OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON |
Encryption Algorithm | MD5, SSL |
Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+ |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
Processor | 1 x ARM Cortex-A9: 1.016 GHz |
RAM | 1 GB DDR3 SDRAM |
Flash Memory | 4 GB |
Expansion / Connectivity | |
Interfaces | 12 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 2 x 1000Base-T RJ-45 |
Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Installed Modules Qty (Max) | 0 (installed) / 2 (max) |
Power | |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50/60 Hz) |
Software / System Requirements | |
Software Included | Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center |
Dimensions | |
Width | 10 in |
Depth | 10 in |
Height | 1.7 in |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 15 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 15 - 95% (non-condensing) |
