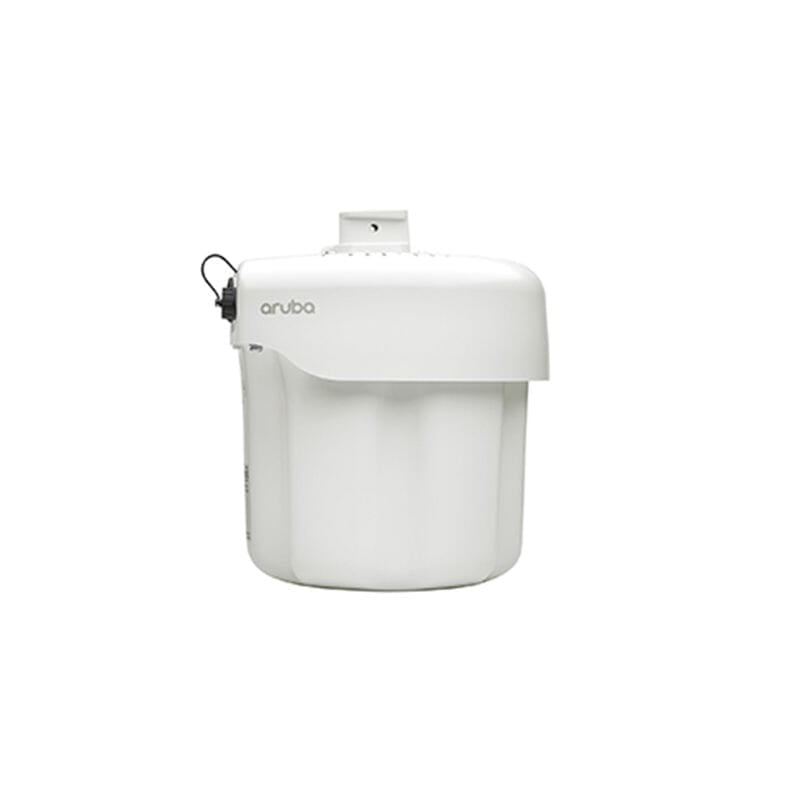

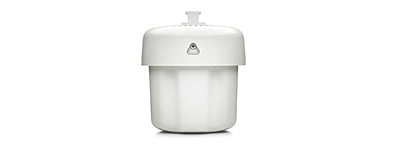

JZ172A

JZ172A Specification

Internet of Things (IoT)

Communications Technology

Bluetooth Low Energy (LE)

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

1733 Mbps

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 1.733 Gpps

Capacity

Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16

Status Indicators

System, status

Compliant Standards

IEEE 802.3at, IEEE 802.3az

Environmental Parameters

Min Operating Temperature

-40 °F

Max Operating Temperature

149 °F

Humidity Range Operating

5 - 95% (non-condensing)

General

Device Type

Wireless access point

Ruggedized Design

Outdoor

Width

9.1 in

Depth

9.4 in

Height

10.6 in

Expansion / Connectivity

Interfaces

1 x 1000Base-X - SFP (mini-GBIC) ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x micro-USB

Power

Power Over Ethernet (PoE) Supported

PoE+

Power Consumption Operational

23 Watt

Antenna

Antenna

Internal

Antenna Qty

6

Software / System Requirements

OS Required

ArubaOS, InstantOS
