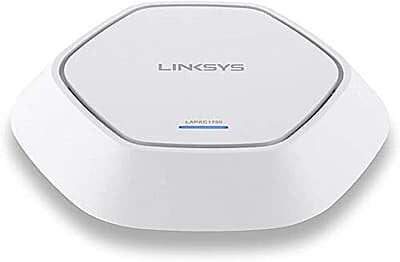

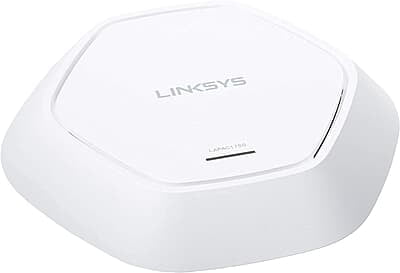

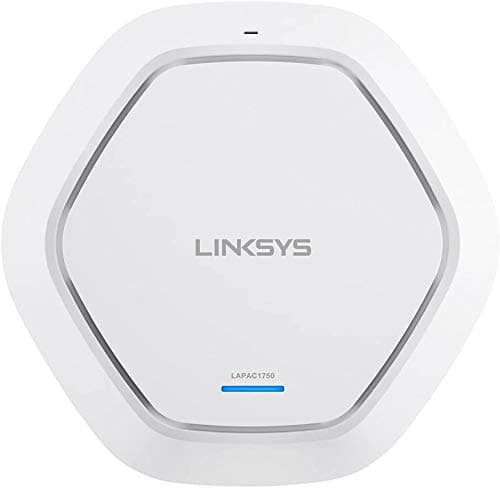

LAPAC1750

Delivers the next generation of Wi-Fi technology (802.11ac) to provide data rates up to AC1750 Mbps.

• Dual Band AC1750 Speed, 3X 11N Speed
• Single Point Control: Clustering
• Range Boost with High-Power Antennas
• Captive Portal for Customized Wi-Fi Hotspot
• Advanced Features

  • Band Steering
  • Captive Portal
  • Clustering
  • Dual Image Support
  • IGMP/MLD Snooping
  • IPv6 Interface
  • Scheduler
  • Wireless Distribution System (WDS)
  • Workgroup Bridge

  LEDs

  • 1 x System LED

  Antenna Gain

  • 1.7dBi @2.4G, 1.9dBi @5G

  Dimensions (LxWxH)

  • 9.57 x 9.33 x 1.72 inches

  Weight

  • 1.12lb

  RF Transmit Power

  • High Power PA

  Operating Humidity

  • 10% to 85% non-condensing

  Operating Temperature

  • 0° to 40°C (32° to 104°F)

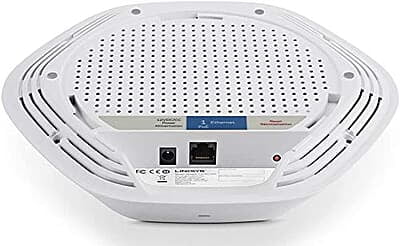

  Ports

  • 1 x 12V/1.5A power port
  • 1 x Gigabit LAN Port with IEEE 802.3at PoE+

  Mounting

  • Ceiling
  • Wall

  Security Features

  • 802.1X Supplicant
  • Channel Isolation
  • Mac-Based Access Control
  • Multiple SSIDs (16)
  • RADIUS
  • Rogue AP Detection
  • SSID Broadcast
  • SSID to VLAN Mapping
  • Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise

  Quality Of Service

  • Bandwidth Management
  • WMM

  Storage Temperature

  • -20° to 70°C (-4° to 158°F)

  Warranty and Support

  • Limited Lifetime Warranty

  Event Notification

  • Local Log, Remote Syslog, and Email Alert

  Radio Frequency Channels

  • 2.412 to 2.462 GHz: 11 channels
  • 5.180 to 5.240 GHz: 4 channels
  • 5.745 to 5.825 GHz: 5 channels

  Centralized Management System

  • Clustering

  Antenna Type

  • Internal PCBA Antenna

  Receive Sensitivity

  • 802.11a/g@54Mbps: -73dBm
  • 802.11b @11Mbps: -85dBm
  • 802.11n@HT20 MCS7: -67dBm
  • 802.11n@HT40 MCS7: -65dBm

  Regulatory Compliance

  • FCC, CE, IC

  Maximum Power Consumption

  • 15W

  Management Interface

  • HTTP
  • HTTPS
  • SNMP

  Buttons

  • Reset Button

  Storage Humidity

  • 10% to 90% non-condensing

  Network Diagnostics

  • Log, Ping, Packet Capture

  Security Lock

  • Kensington Security Lock

  Network Standards

  • IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
  • Power over Ethernet Plus (PoE+) IEEE 802.3at
  • WMM - Wireless Multimedia Prioritization
