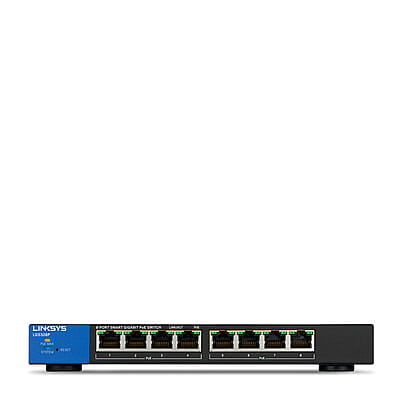

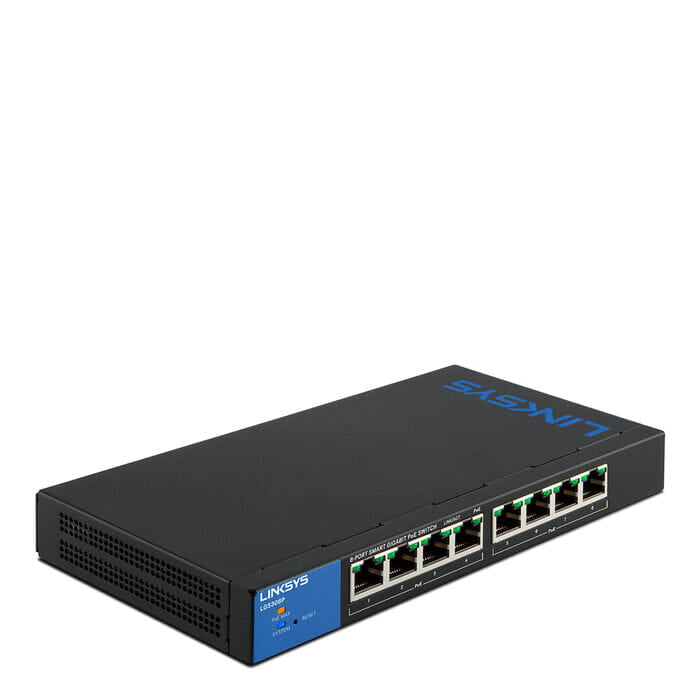

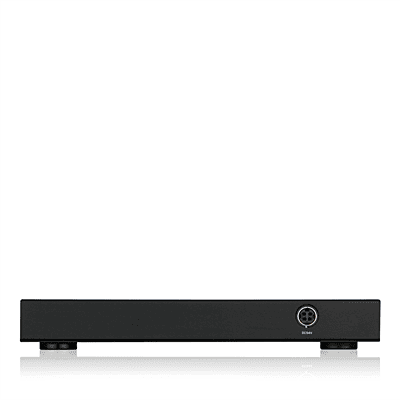

LGS308P

 Designed for business-class management, security, speed, and quality of service, with 8 PoE+ gigabit ethernet ports.

• Integrated Power Over Ethernet Plus
• Easy Configuration and Management
• Advanced Network Security
• Advanced QoS
• Meets EEE (Energy Efficient Ethernet) 802.3az standard
• Jumbo Frame (FE, GE)

  • 9K

  LEDs

  • System (blue), Link/Act/PoE (green/green)

  VLAN

  • Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication

  Memory

  • 128 MB

  Forwarding Rate

  • 11.90 Mpps

  Dimensions (LxWxH)

  • 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)

  Weight

  • 0.562 kg (1.23 Ibs.)

  System Power Consumption without PoE+

  • 110V:9.95W
  • 220V:10.17W

  Number of VLANs Supported

  • 128 active VLANs (4,096 range)

  Operating Humidity

  • 10 to 90% RH

  Operating Temperature

  • 0 to 50°C (32 to 122°F)

  Power Dedicated to PoE+

  • 72W

  Security Features

  • 802.1x Radius authentication
  • DHCP snooping
  • IP-MAC binding
  • Management access control
  • Port security supports limited dynamic lock and locked MAC address

  Power Input

  • (1.5A max)
  • 100–240V
  • 50-60 Hz

  Spanning Tree

  • IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

  Storage Temperature

  • -40 to 70°C (-40 to 158°F)

  RMON

  • Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis

  Total System Ports

  • 8GE

  MAC Address Table Size

  • 8K

  Switching Capacity

  • 16 Gbps

  HOL Blocking Prevention

  • Head of line (HOL) blocking prevention

  Auto Voice VLAN

  • VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

  Other Management

  • Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP

  Link Aggregation

  • IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

  Number of Ports with PoE+ Support

  • 8

  Storm Control

  • Broadcast, flooding, and multicast

  Management Interface

  • HTTP
  • HTTPS

  QoS - Scheduling

  • Priority queuing and weighted round robin (WRR)

  SNMP

  • Version 1
  • Version 2c

  QoS - Class of Service

  • Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

  Storage Humidity

  • 10 to 90% RH (non-condensing)

  Green Power Mode

  • EEE+, Short Reach + Energy Detect

  IGMP Snooping

  • IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

  Network Standards

  • IEEE 802.1d
  • IEEE 802.1q/p
  • IEEE 802.1X
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z

  Port Mirroring

  • Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer

  Firmware Upgrade

  • TFTP
  • Web Browser (HTTP/HTTPS)

  QoS - Priority Levels

  • 4 hardware queues

  Copper FE/GE Ports (RJ45)

  • g1–g8
