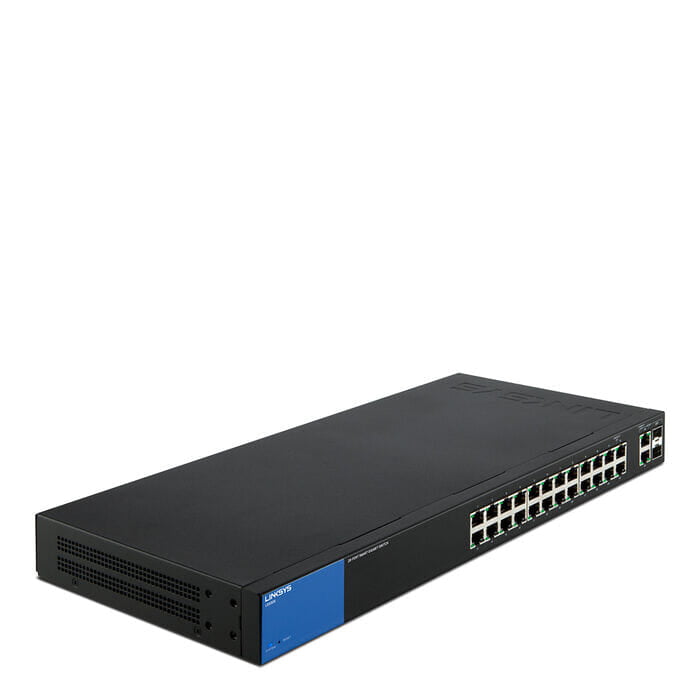

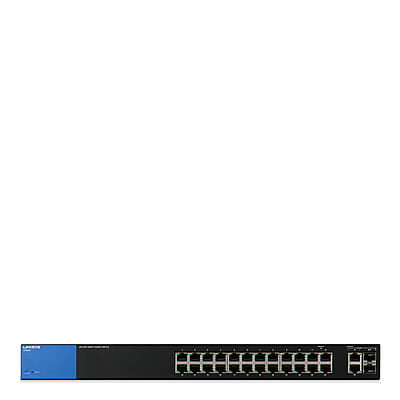

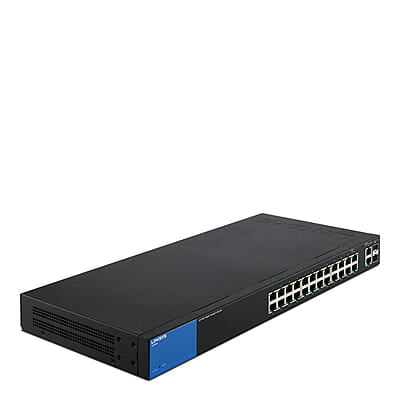

LGS326
Non-returnable
SAR587.43
Out of stock
Tags:
The 8-Port Gigabit Switch can accelerate productivity to Gigabit speeds, with QoS and plug-and-play configuration for ease of use.
Product Details
Designed for business-class management, security, speed, and quality of service, with 26 gigabit ethernet ports.
- Proven Performance and Reliability
- Easy Configuration and Management
- Advanced Network Security
- IPv6 Support
- Enhanced QoS
- Enhanced Security
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
Jumbo Frame (FE, GE)
- 9K
LEDs
- System (blue), Link/Act (green)
VLAN
- Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
Memory
- 128 MB
Forwarding Rate
- 38.69 Mpps
Dimensions (LxWxH)
- 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight
- 2.424 kg (5.33 Ibs.)
System Power Consumption without PoE+
- 110V:17.62W
- 220V:17.72W
Operating Humidity
- 10 to 90% RH
Operating Temperature
- 0 to 50°C (32 to 122°F)
Security Features
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Management access control
- Port security supports limited dynamic lock and locked MAC address
Power Input
- (0.7A max)
- 100–240V
- 50-60 Hz
Spanning Tree
- IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Storage Temperature
- -40 to 70°C (-40 to 158°F)
RMON
- Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Total System Ports
- 26GE
Switching Capacity
- 52 Gbps
HOL Blocking Prevention
- Head-of-line (HOL) blocking prevention
Combo Ports (RJ45 + SFP)
- 2 combo on ports g25, g26
Auto Voice VLAN
- VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
- Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
Link Aggregation
- IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
Storm Control
- Broadcast, flooding, and multicast
Management Interface
- HTTP
- HTTPS
QoS - Scheduling
- Priority queuing and weighted round robin (WRR)
SNMP
- Version 1
- Version 2c
QoS - Class of Service
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Storage Humidity
- 10 to 90% RH (non-condensing)
Green Power Mode
- EEE+, Short Reach + Energy Detect
IGMP Snooping
- IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Network Standards
- IEEE 802.1d
- IEEE 802.1Q/p
- IEEE 802.1X
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
Port Mirroring
- Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
- TFTP
- Web Browser (HTTP/HTTPS)
QoS - Priority Levels
- 4 hardware queues
Copper FE/GE Ports (RJ45)
- g01–g12, g13–g24
