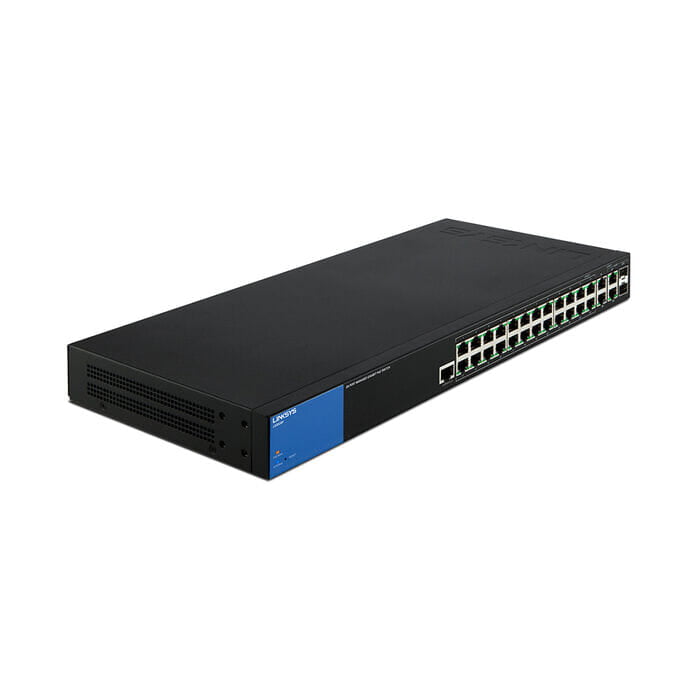

LGS5528P
Non-returnable
SAR1,406.00
Out of stock
Tags:
Gigabit Switches with PoE+ improve productivity with advanced features like Spanning Tree Protocol and Storm Control.
Product Details
28-port switch featuring Gigabit speed, enhanced security, PoE+, and advanced traffic management.
- Two combo mini-GBIC (SFP) ports
- Integrated Power Over Ethernet Plus (PoE+)
- Layer 3 static routing
- IPv6 Support
- Advanced QoS
- Advanced Security
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
Jumbo Frame (FE, GE)
- 9K
LEDs
- System (blue/yellow), Link/Act/PoE (green/green), Max PoE (amber)
VLAN
- Port-based and IEEE 802.1Q tag-based VLANs
Memory
- 128 MB
Forwarding Rate
- 41.67 Mpps
Dimensions (LxWxH)
- 440 x 200 x 44.45 mm (17.32 x 7.87 x 1.75 in.)
Weight
- 3.12 kg (6.88 lbs.)
System Power Consumption without PoE+
- 110V: 30.73W
- 220V: 28.88W
Operating Humidity
- 10 to 90% RH
Operating Temperature
- 0 to 50°C (32 to 122°F)
Power Dedicated to PoE+
- 192W
Security Features
- ARP inspection
- DHCP relay
- DHCP snooping
- IEEE 802.1X radius authentication,
- IP source guard
- IP-MAC-Port binding
- Management access control
- Port security supports limited dynamic lock and locked MAC address
- STP BPDU guard
- STP root guard
Power Input
- (3.5A max)
- 100–240V
- 50–60 Hz
Spanning Tree
- IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Storage Temperature
- -20 to 70°C (-4 to 158°F)
RMON
- Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Total System Ports
- 28GE
MAC Address Table Size
- 16K
Switching Capacity
- 56 Gbps
HOL Blocking Prevention
- Head-of-line (HOL) blocking prevention
Combo Ports (RJ45 + SFP)
- 2 combo on ports g27, g28
Auto Voice VLAN
- VLAN voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
- Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
Link Aggregation
- IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
Number of Ports with PoE+ Support
- 24
Access Control
- Support up to 512 rules for enhanced security and/or advanced QoS policy: allow, deny, or rate limit based on Layer1 to 4 protocol fields at packet header level with MAC ACL and IP ACL
Storm Control
- Broadcast, unknown-unicast, and multicast
Management Interface
- HTTP
- HTTPS
QoS - Scheduling
- Priority queuing and weighted round robin (WRR)
SNMP
- Version 1
- Version 2c
Fans
- Yes (two 8,200 rpm)
QoS - Class of Service
- Port-based, IEEE 802.1p priority-based, IPv4/v6 IP DSCP-based
Storage Humidity
- 10 to 90% RH (non-condensing)
Green Power Mode
- EEE+, Short Reach + Energy Detect
IGMP Snooping
- IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters; supports 256 multicast groups
Network Standards
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE802.1Q/p
- IEEE802.1X
Port Mirroring
- Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
QoS - Priority Levels
- 4 hardware queues
Copper FE/GE Ports (RJ45)
- g01–g13, g14–g26
