LRT214

 Ensure high-speed, secure, and reliable network service for employees, whether they’re at the office or on the road.

• Open VPN Server Support
• Integrated Firewall
• 802.1q Support
• Intuitive Web Administrative Interface
• EasyLink VPN for simple VPN Setup
• Superior IP Sec Throughput

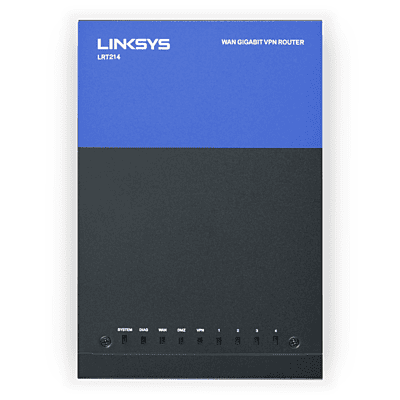

• LEDs

  • System, DIAG, WAN, DMZ. VPN, LAN 1–4

  LEDs

  • System, DIAG, WAN, DMZ. VPN, LAN 1-4

  Bandwidth Management

  • Rate control allowing limiting upstream and downstream bandwidth per service and IP; Priority scheme allowing services mapped to 3 levels of priority

  Dimensions (LxWxH)

  • 191 x 130 x 40 mm

  Weight

  • 722.2 grams (28.43 oz)

  Site-to-Site VPN

  • 50 IPsec site-to-site tunnels
  • DPD (Dead Peer Detection)
  • Keep alive
  • NAT-traversal
  • Split DNS over site-to-site tunnel
  • VPN backup for site-to-site tunnel

  Status and Statistics

  • Port status and statistics
  • VPN tunnel/user status
  • WAN connection status

  Firewall

  • Block Java, cookies, ActiveX, http proxy servers
  • DoS (Denial of Service) prevention
  • IGMP proxy
  • Schedule-based access rules (50)
  • SPI (Stateful Packet Inspection)
  • UPnP
  • Web filtering (URL and keyword blocking)

  DDNS

  • ChangeIP
  • Dynamic DNS (DynDNS, 3322)
  • NOIP

  Operating Humidity

  • 10% to 85% non-condensing

  Operating Temperature

  • 0ºC to 40ºC (32ºF to 104ºF)

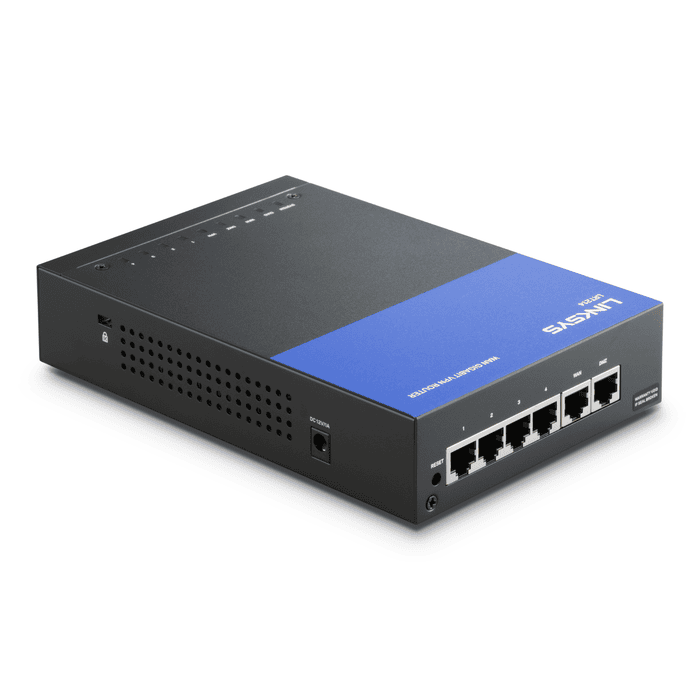

  Ports

  • One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 WAN/DMZ port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android), reset button

  DHCP Server

  • Supports multiple address pools, one pool per VLAN subnet

  UPnP

  • Yes

  Reset Button

  • Yes

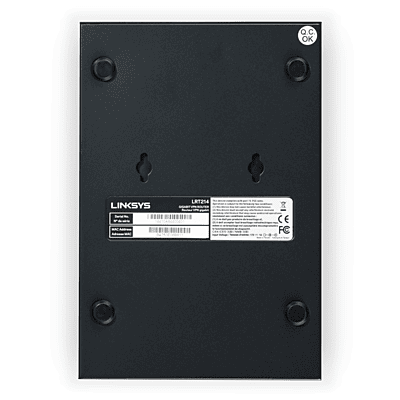

  Mounting

  • Desktop
  • Wall

  DNS

  • DNS Local Database
  • DNS Proxy

  Monitoring/Alerting

  • Email Alert
  • SNMP Trap
  • Syslog

  Storage Temperature

  • 0ºC to 70ºC (32ºF to 158ºF)

  Warranty and Support

  • Limited Lifetime Warranty

  Remote Access VPN

  • Client-to-Site IPsec
  • OpenVPN
  • PPTP

  Performance

  • IPsec VPN throughput: 110 Mbps
  • Maximum concurrent connections: 30,000
  • Maximum NAT throughput: 900 Mbps

  Power

  • 12V 1A

  VLAN Trunking

  • VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches.

  DMZ Port

  • DMZ Range
  • DMZ Subnet

  IPv6

  • 6to4
  • DHCPv6-PD
  • Router Advertisement

  Regulatory Compliance

  • CE Class B
  • FCC Class B,

  WAN Connection

  • Dynamic IP
  • L2TP
  • PPPoE
  • PPTP
  • Static IP
  • Transparent Bridge

  Web-based Administrative Interface

  • Browser supporting IE
  • Firefox
  • Remote management over HTTPS
  • Safari
  • Setup wizard

  Maintenance

  • Configuration backup and restore
  • Diagnostics (ping and DNS name lookup)
  • Dual configurations (startup and mirror)
  • Factory defaults
  • Firmware upgrade
  • Reboot

  Routing

  • Routing Information Protocol (RIP) v1, v2 and RIP for IPv6 (RIPng)
  • Static

  NAPT

  • 1-to-1 NAT (10)
  • DMZ host
  • Port address translation (30)
  • Port forwarding (30)
  • Port triggering (30)

  Port Management

  • 10/100/1000 Mbps
  • Auto negotiation
  • Half/Full duplex

  NAT

  • Gateway mode
  • Router mode

  Storage Humidity

  • 5% to 90% non-condensing

  Security Lock

  • Kensington Lock

  802.1q VLAN

  • 5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)
