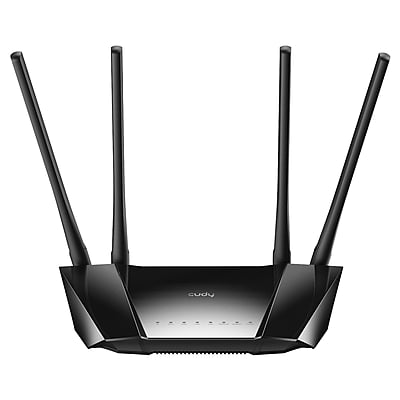

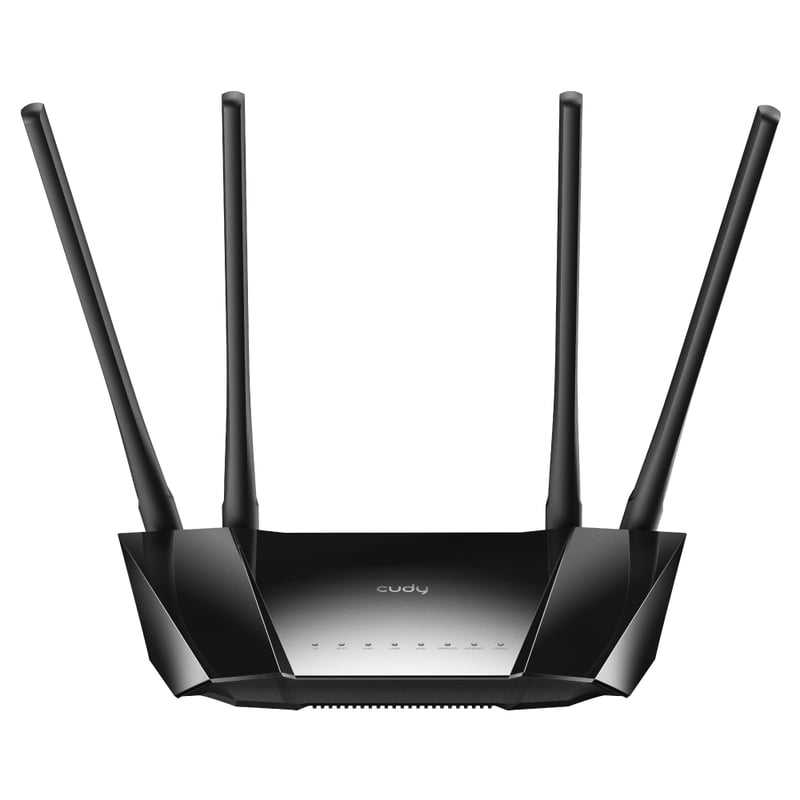

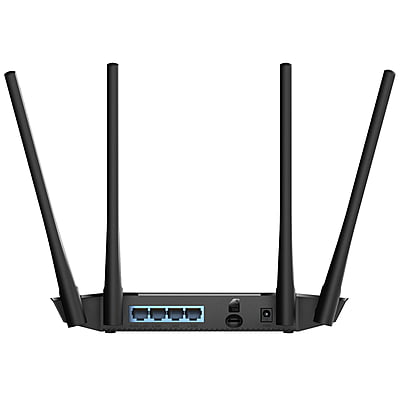

LT400
SAR175.00
Out of stock
Tags:
● 4G LTE Up to 150 / 50Mbps DL/UL Speed
● Speedy AC1200 Wi-Fi
● 4× 10/100 Mbps Ethernet Ports
● Nano SIM Slot
● WAN Failover
● VPN ZeroTier, WireGuard, OpenVPN, L2TP, PPTP
● Speedy AC1200 Wi-Fi
● 4× 10/100 Mbps Ethernet Ports
● Nano SIM Slot
● WAN Failover
● VPN ZeroTier, WireGuard, OpenVPN, L2TP, PPTP
Product Details
Specifications
| Model | 300Mbps Wireless N 4G LTE Router | |
| DRAM/FLASH | 64MB DDR2/8M SPI | |
| Interface | 3 x RJ45 10M/100M LAN Ethernet interfaces | |
| 1 x RJ45 10M/100M WAN Ethernet interface | ||
| 1 x Reset | ||
| 1 x Power Jack (12V/1A) | ||
| 1 x SIM card slot (Nano) | ||
| Antenna | 2.4G (802.11N): 2T2R 4G: 2T2R | |
| Gain | 5dBi | |
| Range | 2.4-2.4835GHZ | |
| LED | PWR, WIFI, 4G, LAN1-LAN3, WAN/LAN4 | |
| Transmit Power | 11b: 1/2/5.5/11Mbps | |
| 11g: 6/9/12/18/24/36/48/54Mbps | ||
| 11n: 300Mbps(MAX) | ||
| Spread-spectrum technique | DSSS | |
| Wireless Security | WPA-PSK/WPA2-PSK, WPA/WPA2 | |
| Modulation type | 11b: CCK, QPSK, BPSK | |
| 11g: OFDM | ||
| 11n: QPSK, BPSK, 16-QAM, 64-QAM | ||
| Media access protocol | CAMA/CA with ACK | |
| 4G module RF Power | Class 4 (33dBm±2dB) for GSM850 | |
| Class 4 (33dBm±2dB) for EGSM900 | ||
| Class 1 (30dBm±2dB) for DCS1800 | ||
| Class 1 (30dBm±2dB) for PCS1900 | ||
| Class E2 (27dBm±3dB) for GSM850 8-PSK | ||
| Class E2 (27dBm±3dB) for EGSM900 8-PSK | ||
| Class E2 (26dBm±3dB) for DCS1800 8-PSK | ||
| Class E2 (26dBm±3dB) for PCS1900 8-PSK | ||
| Class 3 (24dBm+1/-3dB) for WCDMA bands | ||
| Class 3 (23dBm±2dB) for LTE-FDD bands | ||
| LTE Character | Support 3GPP R8 non-CA cat 4 FDD | |
| Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO | ||
| LTD-FDD: DL 150Mbps(MAX)/ UL 50Mbps(MAX) | ||
| LTE Frequency Bands EU Version | LTE-FDD: B1/B3/B7/B8/B20/B28A | |
| LTE-TDD: B38/B40/B41 | ||
| WCDMA: B1/B8 | ||
| LTE Frequency Bands US Version | LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71 | |
| WCDMA: B2/B4/B5 | ||
| Software function | Access mode | Router mode |
| Basic setting | WAN setting | |
| LAN setting | ||
| Mac clone | ||
| DNS | ||
| 2.4G WiFi setting | ||
| 2.4G guest network setting | ||
| 2.4G channel setting | ||
| 2.4G signal strength setting | ||
| 2.4G channel optimization | ||
| Advance setting | Black list setting | |
| Bonding list | ||
| WIFI time off | ||
| Web blacklist | ||
| Modify administrator password | ||
| Panel light time off | ||
| QoS | ||
| Static bonding | ||
| Forbidden connection | ||
| Restore to default setting | ||
| Restart router | ||
| Firmware upgrade | ||
| More functional | Web management | |
| L2TP client | ||
| PPTP client | ||
| UPNP | ||
| DMZ | ||
| Remote web management | ||
| Port forwarding | ||
| Network fault diagnosis (web) | ||
| Working temperature | 0°C~40°C | |
| Storage temperature | -20°C ~ 70°C | |
| Working humidity | 5%~95% (typical) | |
| Power | 12V/1A European Standard |
