MC200CM
SAR155.00
Out of stock
Tags:

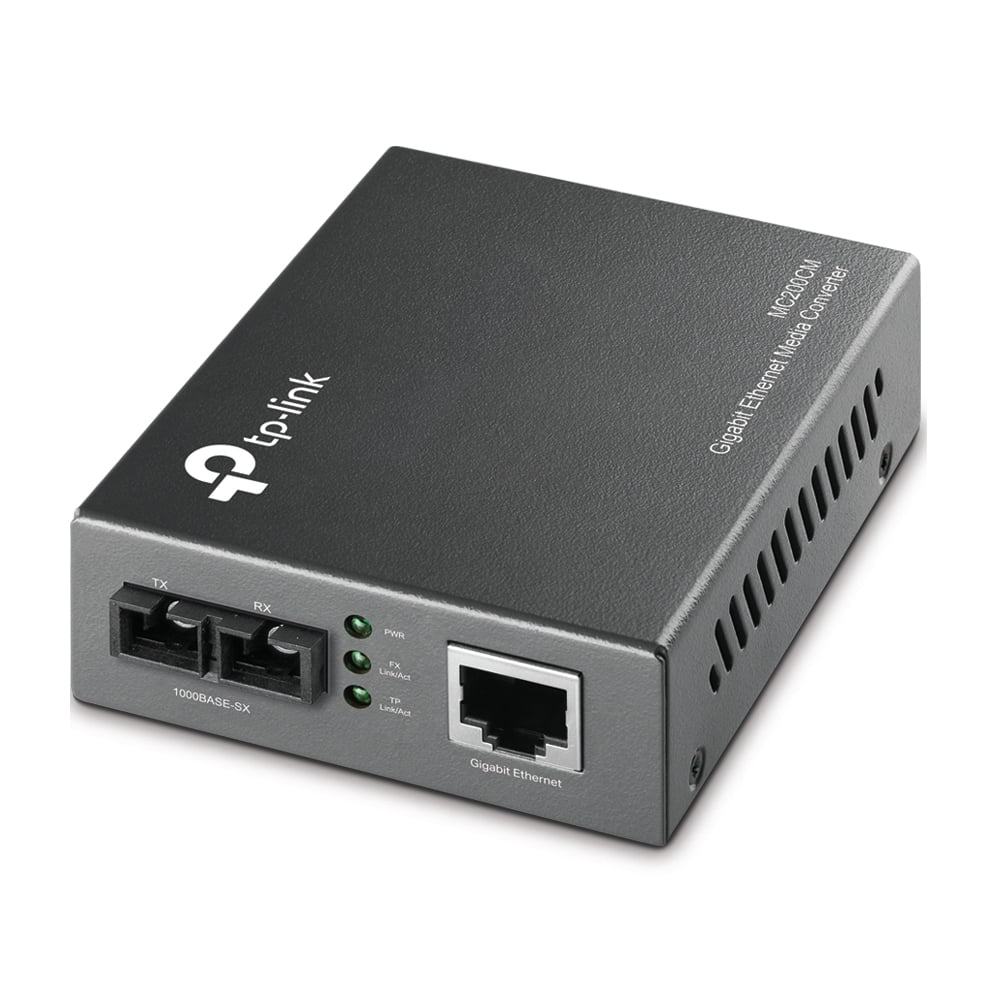

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector.
Product Details
Gigabit Multi-Mode Media Converter
- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 0.55km
What This Product Does
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
|---|---|
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 0.55km using 50/125um fiber Extends fiber distance up to 0.22km using 62.5/125um fiber |

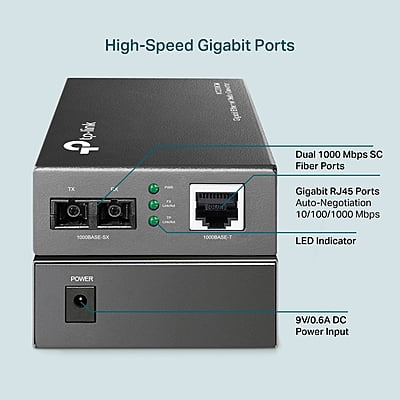

| Ports | 1 1000M SC/UPC port 1 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 850nm |

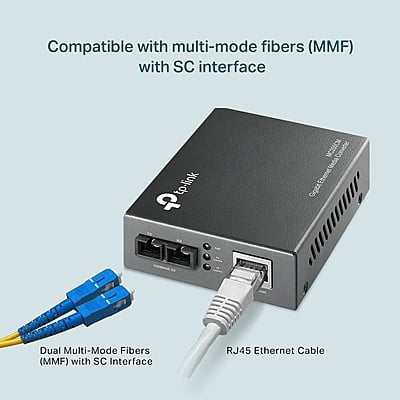

| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |

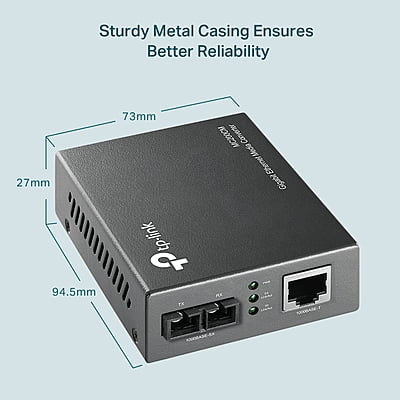

| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.66W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC200CM • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
