MC220L
Non-returnable
SAR150.00
Tags:

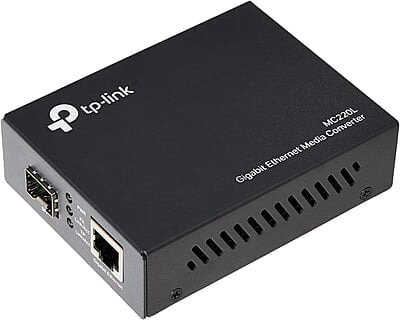

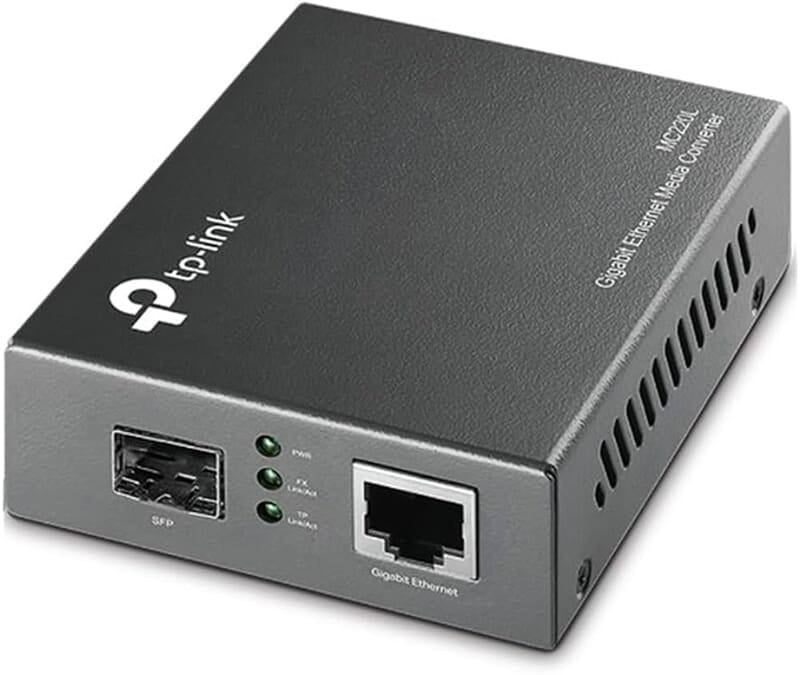

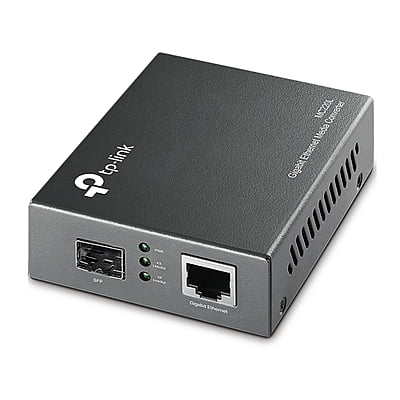

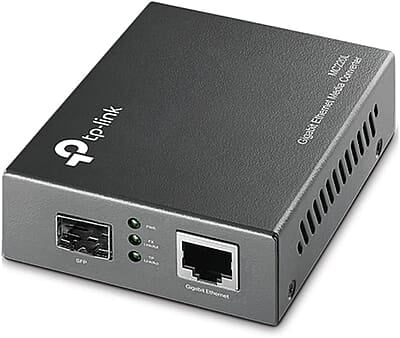

The MC220L is a media converter designed to convert between 1000BASE-SX/LX fiber and 10/100/1000Base-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC220L applies the IEEE802.3ab 1000Base-T & IEEE802.3z 1000Base-SX/LX standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.
Choose Quantity
Product Details
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
|---|---|
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Maximum transmission distance depends on the inserting SFP module |
| Ports | 1 1000M SFP port 1 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.7W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC220L • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
