NIM-2T=
NIM-2T Overview
The Cisco Gigabit Ethernet High-Speed WAN Interface Card (HWIC) brings Gigabit Ethernet connectivity to Cisco Integrated Services Routers routers to accelerate applications such as Metro Ethernet access, inter-VLAN routing, and high-speed connectivity to LAN switches.The single-port Cisco Gigabit Ethernet HWIC provides Gigabit Ethernet optical and copper connectivity in a compact form factor for all Cisco Integrated Service Routers (ISRs).
Quick Specs

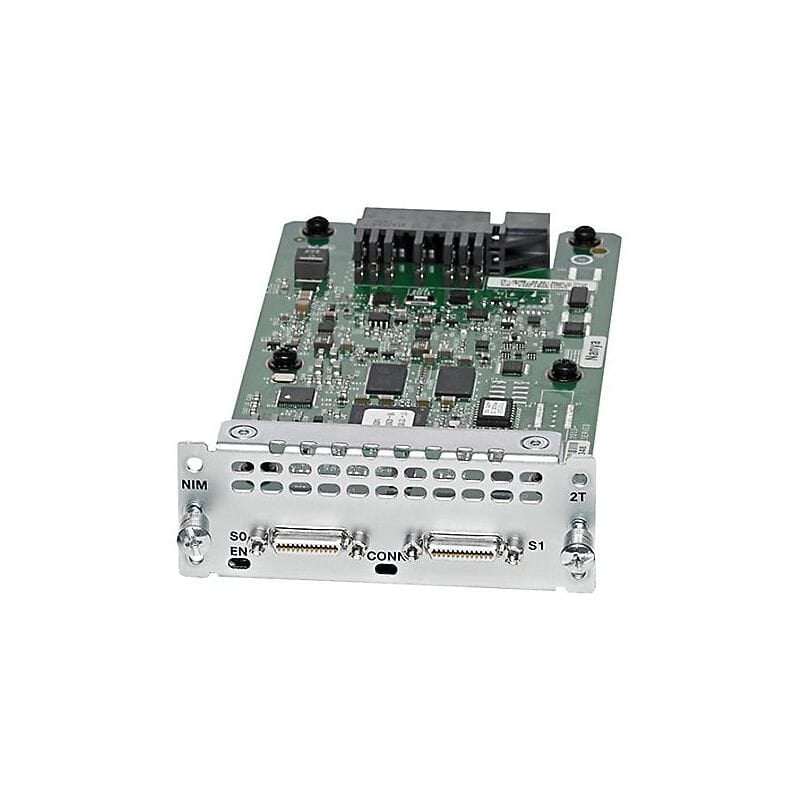

Figure 1 shows the appearance of NIM-2T.
Table 1 shows the Quick Specs.
Product | NIM-2T |
Synchronous support | Yes |
Synchronous maximum speed (per port) | 8 Mbps |
Serial protocols | EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
Telecomm post, telephone, and telegraph (PTT) | • TBR1 and 2 • JATE digital |
Safety | • UL 60950-1 (United States) • CAN/CSA 22.2, 60950-1 (Canada) • AS/NZS 60950-1 (Australia/New Zealand) • EN60950-1 (Europe) • IEC 60950-1 (International) |
Immunity | • EN300386 • CISPR24 • EN55024 • EN50082-1 • 61000-4-2/3/4/5/6/8/11 |
Emissions | • FCC Part 15 Class A • ICES-003 Class A • EN55022 Class A • CISPR22 Class A • AS/NZSCISPR22 Class A • VCCI Class A • EN 300386 • EN61000-3-2/3 • CNS13438 |
Physical specifications | • Singlewide NI, no slot restrictions • Dimensions (H x W x D) 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm) |
Environmental specifications | • Operating temperature: 32 to 104°F (0 to 40°C) • Storage temperature: -4 to 149°F (-20 to 65°C) • Relative humidity: 10 to 90%, noncondensing |
