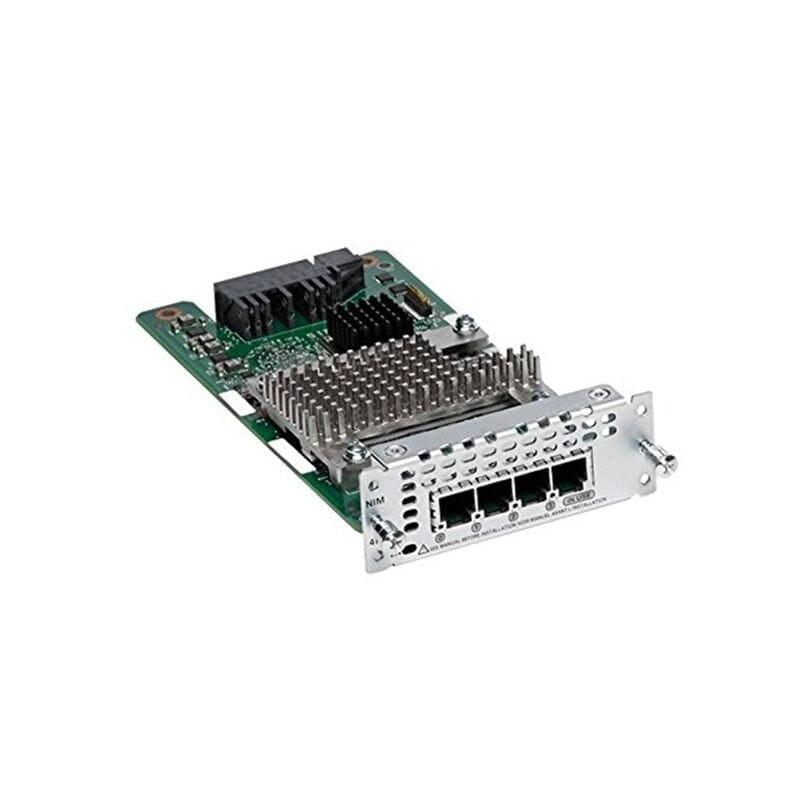

NIM-4FXSP=

NIM-4FXSP Specification

Number of Ports

4

ISR G2 comparison

VIC3-4FXS/DID

Cisco IOS Release

XE16.5 and above

Telnet or console

Remote and local configuration, monitoring, and troubleshooting from Cisco IOS XE Software command-line interface.

Simple Network Management Protocol

(SNMP)

● Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user

● Standard MIB (MIB II)

● Cisco Integrated DSU/CSU MIB

● RFC 1406 T1 MIB, including Alarm Detection and Reporting

SNMP traps

Generated in response to alarms

Standard

TIA-968-B (USA)

CS-03 (Canada)

AS/CA S003 (Australia)

PTC220 (New Zealand)

Emission

47 CFR Part 15

CISPR22: Edition 6.0: 2008

CNS13438: 2006

EN 300 386 V1.6.1

EN 55022:2010

EN61000-3-2: 2006 [Inc amd 1 '&' 2]

EN61000-3-3: 2008

ICES-003 Issue 5: 2012

KN 22: 2009

TCVN 7189: 2009

VCCI: V-3/2013.04

Immunity

CISPR24: 2010

EN 300 386 V1.6.1

EN55024: 2010

KN24: 2011

TCVN 7317: 2003
