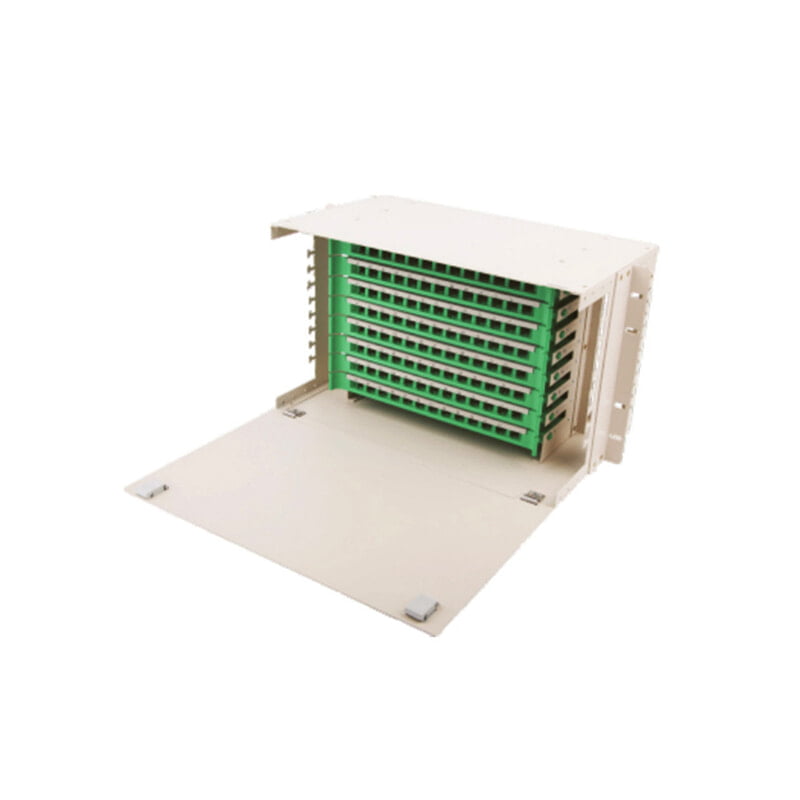

ODF Patch PANEL

An ODF Patch Panel, also known as an Optical Distribution Frame Patch Panel, serves as an interface panel within a fiber optic network. It provides a centralized location for terminating fiber optic cables, managing fiber connections, and protecting fiber optic splices. Here's a breakdown of its key features:

Purpose:

• Provides a structured and organized way to manage fiber optic cable terminations and connections within a network.
• Protects fragile fiber optic splices and connectors from physical damage and environmental hazards.
• Offers easy access for adding, removing, or modifying fiber optic connections.

Components:

• Typically made of metal for durability and features a rack-mountable design for installation within server racks or cabinets.
• Includes adapter panels to house fiber optic adapters that connect with the incoming and outgoing fiber optic cables.
• May include splice trays to store and protect fiber optic splice points where individual fibers are joined together.
• Can have cable management features like bend radius control spools or D-rings to prevent excessive bending of the fiber optic cables, which can degrade signal quality.

Benefits:

• Improved Organization: Centralizes fiber optic terminations and connections, making them easier to manage and troubleshoot.
• Enhanced Protection: Shields fiber optic splices and connectors from physical damage and dust, ensuring reliable signal transmission.
• Scalability: Allows for easy addition or modification of fiber optic connections as network demands evolve.
• Increased Efficiency: Simplifies maintenance and troubleshooting procedures within the fiber optic network.
