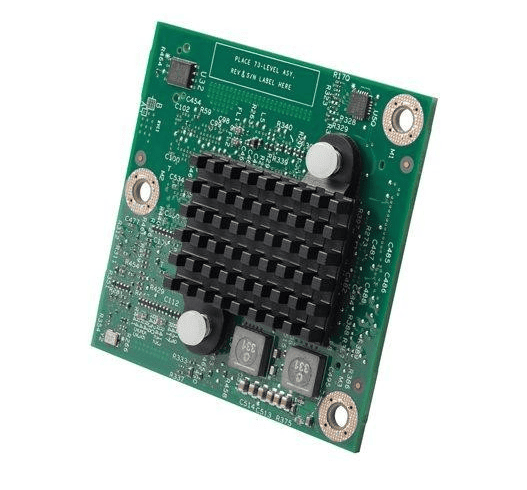

PVDM4-32=
PVDM4 Modules Specifications | |
Feature | Motherboard PVDMs (PVDM4s) |
Components | |
DSP | Multicore DSP technology |
Interface | Integrated Services Card (ISC) slot on motherboard or T1/E1 NIM |
Features | |
Operating temperature | 32° to 122°F (0° to 50°C) |
Voltage | 3.3V |
Current | 1.47A |
Power | 4.85W |
Weight | 0.08 lb (36 g) |
Dimensions (H x W x D) | 0.67 x 2.50 x 2.62 in. (1.7 x 5.1 x 6.7 cm) |
Regulatory and Compliance | |
Safety | Complies with: ● IEC 60950 (worldwide) ● AS/NZS 60950-1 (Australia and New Zealand) ● CAN/CSA-C22.2 No. 60950-1, 1st and 2nd Ed. (Canada) ● GB4943-95 (People's Republic of China) ● EN60950-1, 1st and 2nd Ed. (CENELEC; includes EU and EFTA) ● NOM-019-SCFI-1998 (Mexico) ● UL 60950-1, 1st and 2nd Ed. (United States) |
Homologation | Platform dependent |
Mean time between failures (MTBF) | System dependent |
EMC | |
Emissions | ● CISPR22, Class B ● EN55022, Class B, CFR47, Part 15, Subpart B, Class B |
Harmonics | EN61000-3-2 |
Flicker | EN61000-3-3 |
Immunity | ● CISPR24 ● EN 55024 ● EN50082-1 |
Electrostatic discharge (ESD) | EN 61000-4-2 |
RF fields | EN 61000-4-3 |
EFT | EN 61000-4-4 |
Surge | EN 61000-4-5 |
Conducted RF | EN 61000-4-6 |
Power-frequency magnetic fields | EN 6100-4-8 |
Voltage dips, sags, and interruptions | EN 61000-4-11 |
