QSFP-40G-LR4
Non-returnable
SAR21,350.00
Out of stock
Tags:
QSFP 40GBASE-LR4 OTN Transceiver. LC. 10KM The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard.
Product Details

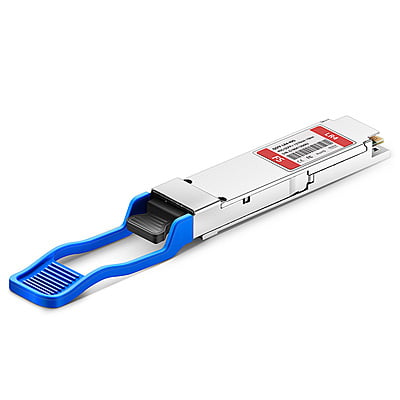

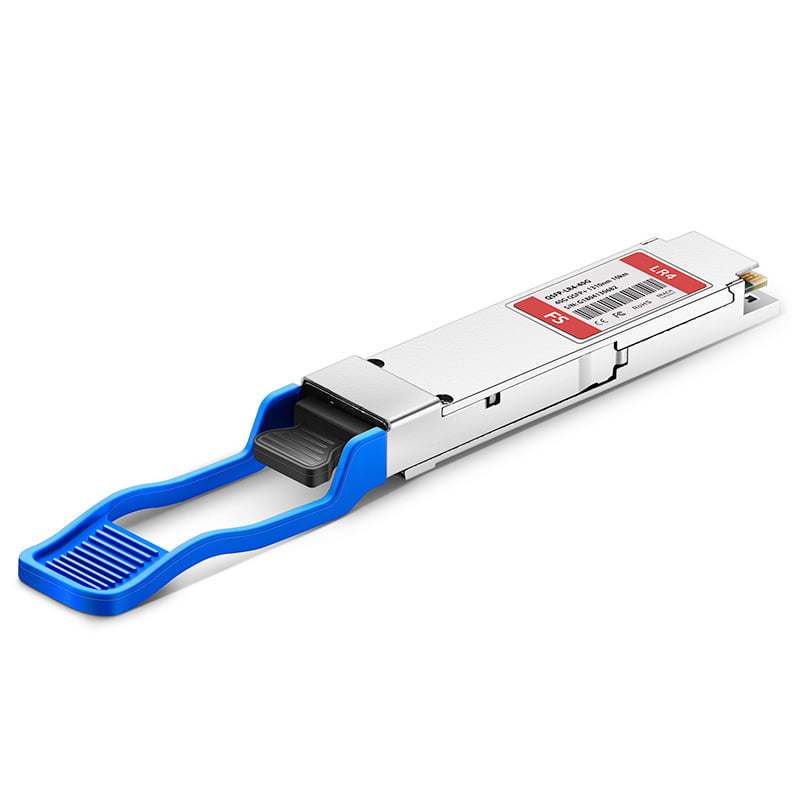

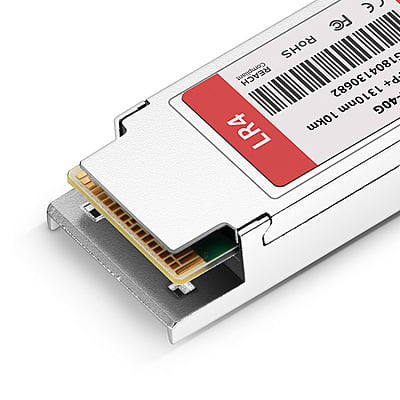

The QSFP-40G-LR4, also known as 40GBASE-LR4 QSFP+ module, is a high-performance optical transceiver used for data transmission over long distances in data centers, enterprise networks, and service provider applications. Here's a breakdown of its key aspects:
Functionality:
- Enables 40 Gigabit Ethernet (40GbE) data transfer rates.
- Utilizes four individual wavelengths (1310nm) on a single strand of single-mode fiber (SMF).
- Achieves a maximum transmission distance of up to 10 kilometers (6.2 miles).
Technical Specifications:
- Form factor: QSFP+ (Quad Small Form-Factor Pluggable)
- Connector: Duplex LC
- Wavelength: 1310nm (nanometers)
- Maximum data rate: 44.6 Gbps (Gigabits per second)
- Protocols: 40GbE, OTU3 (Optical Transport Unit 3)
Benefits:
- High speed and bandwidth: Supports demanding applications requiring large data transfers.
- Long reach: Ideal for connecting network devices separated by significant distances.
- Scalability: Allows for flexible network expansion and upgrades.
- Hot-swappable: Enables easy installation and removal without powering down the equipment.
