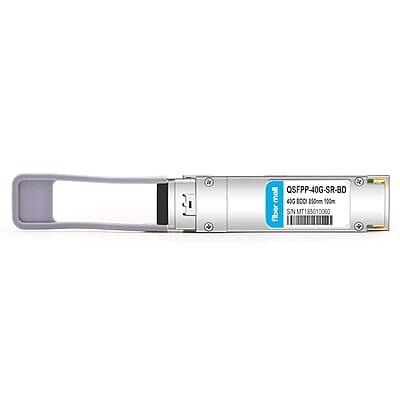

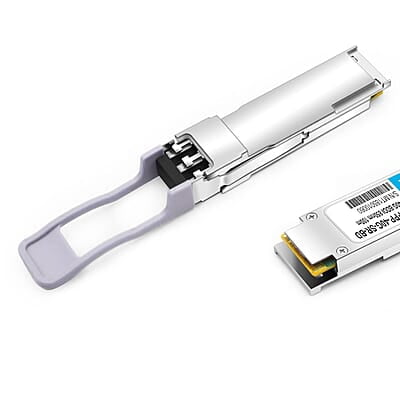

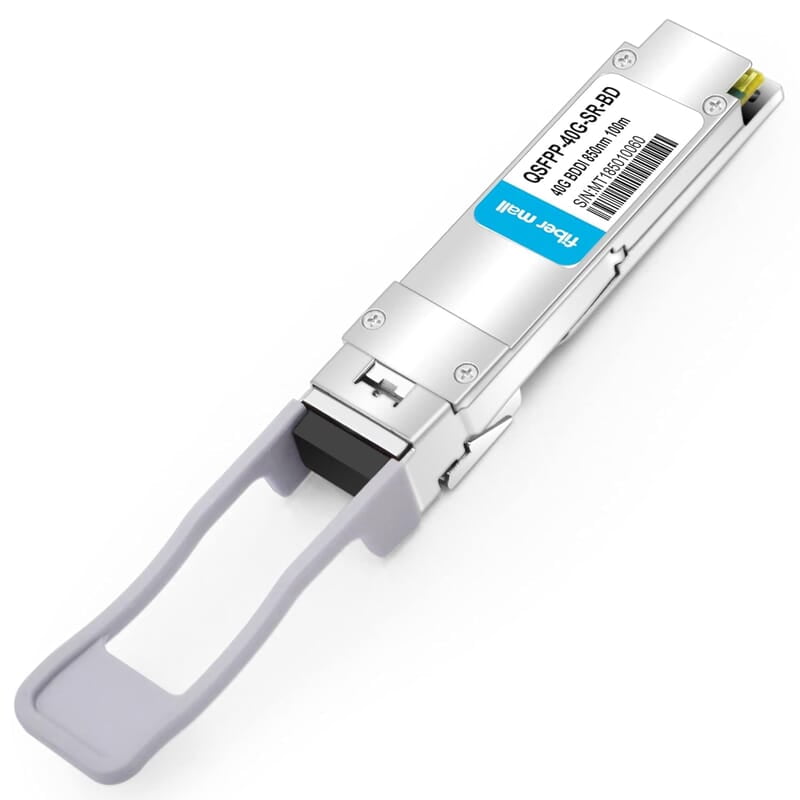

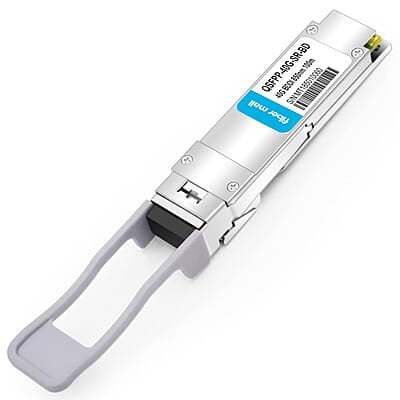

QSFP-40G-SR-BD
The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.
QSFP-40G-SR-BD Specification | |
Description | Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF |
Dimensions | 13.5 x 18.4 x 72.4 mm |
QSFP Port cabling specifications | |
Wavelength (nm) | 832 - 918 |
Cable Type | MMF |
Core Size (microns) | 50.0 50.0 50.0 |
Modal Bandwidth (MHz-km) | 500 (OM2) 2000 (OM3) 4700 (OM4) |
Cable Distance | 30m 100m 150m |
Power Consumption (W) | 3.5 |
Pull Tab Color | Gray |
Optical characteristics | |
Type | 40GBASE-SR-BiDi, Duplex MMF |
Transmit Power (dBm) | Max:+5 per lane Min:-4 per lane |
Receive Power (dBm) | Max:+5.0 per lane Min:-6.0 per lane |
Transmit and Receive Wavelength (nm) | 832 to 918 |
Environmental conditions | |
Commercial temperature | +10 to 70°C (50 to 158°F) |
Storage temperature | -40 to 85°C (-40 to 185°F) |
Regulatory and standards compliance | |
Standards
| •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6 |
Safety
| •Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant |
