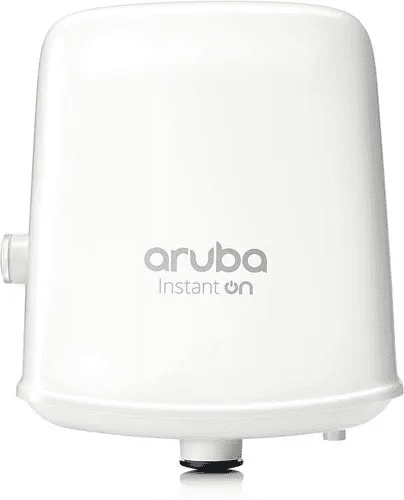

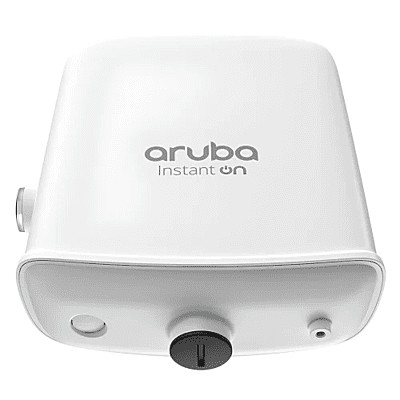

R2X11A
Aruba R2X11A Instant On AP17 Outdoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for medium-density small business environments requiring high performance and bandwidth. The weather-proof Aruba Instant On AP17 Outdoor Access Points are designed to deliver high-performance network coverage to outdoor and environmentally challenging locations like smaller manufacturing units and open-air restaurants. Enjoy stronger Wi-Fi strength even in the pool and patio area of your space.
Aruba Instant On AP17 Outdoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for medium-density small business environments requiring high performance and bandwidth. The weather-proof Aruba Instant On AP17 Outdoor Access Points are designed to deliver high-performance network coverage to outdoor and environmentally challenging locations like smaller manufacturing units and open-air restaurants. Enjoy stronger Wi-Fi strength even in the pool and patio area of your space.
The compact form factor of the Aruba Instant On AP17 Outdoor Access Points deliver reliable and affordable multi-user capabilities and an aggregate peak data rate of 2 Gbps to support high-definition video streaming and cloud application requirements. These access points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications.
CertificationsWPA2 , WPA3 , Enhanced Open (OWE)
Wi-Fi Alliance certified (WFA) 802.11ac Wave 2 (Wi-Fi 5)
Input voltage Power over Ethernet (PoE): 802.3af power consumption 13.5W max
RegulatoryIEC 60950/62368 CB
UL2043 for air-handling space (plenum rating)
Wi-Fi antennaTwo dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz)
Connectivity, standardIEEE 802.11ac, 802.11n
Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

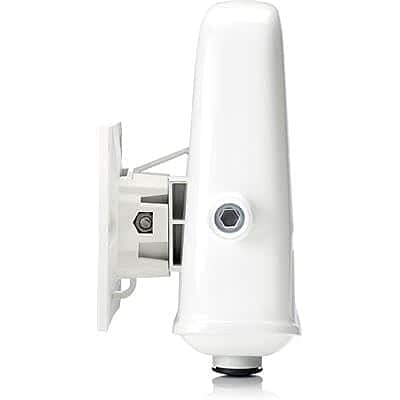

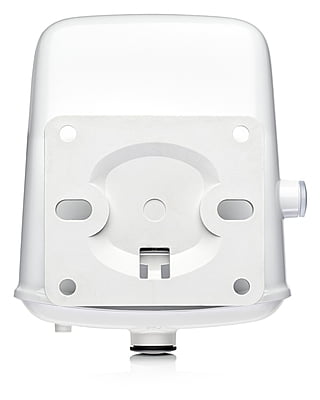

MountingThe access point ships with a mount bracket, can be mounted on the wall or a pole
Radio coverageDual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
WarrantyAruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.
Weight650 g (1.4 lb)
Dimensions187 x 156 x 67 mm (7.4 x 6.1 x 2.6 in)
