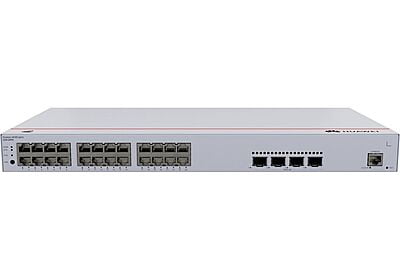

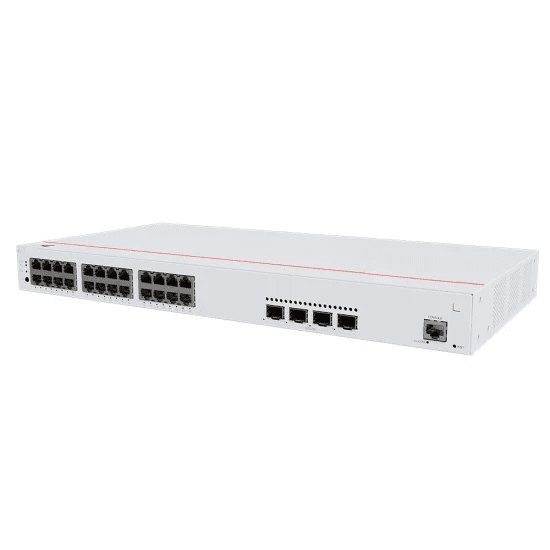

S220-24P4X
Table 4-28 S220-24P4X basic information
| Item | Details |
|---|---|
| Description | S220-24P4X (24 ports 10/100/1000BASE-T (400 W PoE+), 4 ports 10GE SFP+, built-in power supply) |
| Part number | 98012376 |
| Model | S220-24P4X |
| First supported version | V600R023C00 |
Introducing the innovative Huawei S220-24P4X switch , the ultimate networking solution that embodies performance, reliability and future-proof technology. The S220-24P4X has been carefully designed to meet the dynamic needs of modern businesses, offering unmatched network performance.
Imagine a network backbone that is not only robust, but also intelligent. The epitome of this is the Huawei S220-24P4X, equipped with 24 Gigabit Ethernet ports that support fast data transmission and seamless connectivity to multiple devices. The switch's performance is further enhanced by 4 10G SFP+ ports , providing fast uplink connections that ensure your network is always running at peak performance.
Efficiency in managing network traffic is key, and the Huawei S220-24P4X excels with built-in Quality of Service (QoS) and Link Aggregation Control Protocol (LACP) features . These features prioritize critical network traffic and improve data throughput, ensuring your most important applications perform at their best without interruption.
With the Huawei S220-24P4X, integrating advanced technology into your existing network is easy. This switch is designed for easy configuration and management, offering a user-friendly interface that makes network administration simple, even for those with minimal technical knowledge. The intelligent management system allows you to effortlessly configure and monitor network performance, ensuring optimal operation.
Reliability and durability are the hallmarks of the Huawei S220-24P4X, built to withstand the rigors of continuous business operations. Its commitment to energy efficiency is not only good for the environment, but also profitable, lowering operating costs in the long run.
Choose Huawei S220-24P4X for a network that is both efficient and ready for future expansion. This switch is an investment in the development and reliability of the network. For businesses that want to expand their network infrastructure with minimum effort and maximum profit, the Huawei S220-24P4X is ready to exceed expectations. Contact us to learn how this state-of-the-art network switch can increase operational efficiency and ensure a smooth network experience.

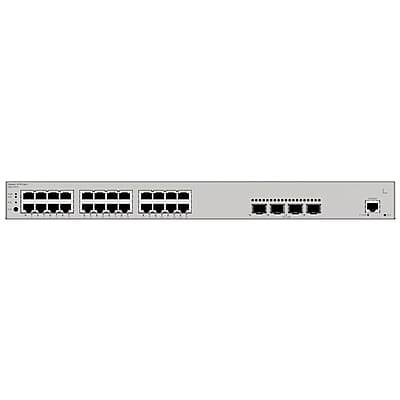

ingredients
1 | One MODE button | 2 | Twenty-four 10/100/1000BASE-T PoE+ ports |
3 | Four 10GE SFP+ ports | 4 | One console port |
5 | One RST button ANNOUNCEMENT: To restore factory settings and reset your device, hold down the button for at least 6 seconds. To reset your device, press the button. Resetting your device will result in an interruption of service. Be careful when pressing the button. | 6 | Ground screw NOTE: It is used with a grounding cable . |
7 | Socket for AC power cable attachment strap NOTE: The AC power cord locking strap does not come with the switch. | 8 | AC socket NOTE: It is used with an AC power cord . |
Ports
| Harbor | Connector type | Description | Components available |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | The 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. | Ethernet cable |
| 10GE SFP+ port port | SFP+ | The 10GE SFP+ Ethernet optical port supports auto-sensing up to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. |
|
| Console port | RJ45 | The console port is connected to the console for on-site configuration. | Console cable |
Indicators and buttons
NO. | Indicator | Name | Color | Status | Description |
|---|---|---|---|---|---|
1 | PWR | Power module indicator | - | Off | The switch is turned off. |
Green | Constant | Power is normal. | |||
2 | SYS | System status indicator | - | Off | The system is not working. |
Green | Fast flashing | The system starts up. | |||
Green | Constant | During the system boot preparation phase, the SYS indicator remains solid green for up to 30 seconds. | |||
Green | Slow flashing | The system works normally. | |||
Red | Constant | The system does not operate normally after registration or a fan alarm or temperature alarm has been generated. | |||
3 | PoE | PoE indicator | - | Off | PoE mode not selected. |
Green | Constant | PoE mode is selected and the service port indicators show the PoE status of each port. | |||
4 | MODE | Mode change button | - | - |
If you do not press the MODE button within 45 seconds, the service port indicators will return to the default mode. In this case, the PoE indicator is turned off. |
5 | - | Service port indicator (one indicator for each port) | The arrowheads show the location of the ports. The down arrowhead indicates the port at the bottom, and the up arrowhead indicates the port at the top. | The meaning of the service port indicators varies in different modes. For details, see Table 4-31 . NOTE: If a power failure occurs on the device's circuit board, the indicators for the last four GE or 10GE optical ports on the device's front panel will flash green cyclically at an interval of 1 second, with each indicator remaining on for 0.25 seconds. | |
6 | CLOUD | Cloud indicator | - | Off | The device is not in the cloud management state. |
Blue | Fast flashing | The device connects to the cloud. | |||
Blue | Slow flashing | The device is in cloud management status. |
Display mode | Color | Status | Description |
|---|---|---|---|
Default mode | - | Off | The port is not connected or has been disabled. |
Green | Constant | A link has been established on the port. | |
Green | Blinking | The port sends or receives data. | |
PoE mode | - | Off | The port does not provide power to the powered device (PD). |
Green | Constant | The port provides power to the PD. | |
Green | Blinking | The power of the PD device connected to the port exceeds the port power or the power threshold configured on the port. Alternatively, PD is not compliant with IEEE standards. |
Power system
The switch has a built-in AC power module and does not support replaceable power modules. The built-in power module can deliver 400W PoE power, which provides full PoE power on 24 ports in the 802.3af standard or on 13 ports in the 802.3at standard.
Heat dissipation system
The switch has two built-in fans for forced air cooling. Air enters from the left side and front panel and exits from the right side.
When properly operated at normal temperatures, the device meets desktop-class noise requirements. However, the fan speed may be high and the noise may be loud when the device starts.
This figure only shows the air flow direction and does not represent the actual device.
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(inch)] | Basic dimensions (excluding parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in x 17.4 in x 8.66 in) Maximum dimensions (depth is the distance from the front panel ports to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in x 17.4 in x 8.94 in) |
| Dimensions with packaging (H x W x D) [mm(inch)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 Law |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.92 kg (6.44 lb) |
| Weight with packaging [kg(lb)] | 3.79 kg (8.36 lb) |
| Typical power consumption [W] | 37.12 W |
| Typical heat dissipation [BTU/hour] | 126.65 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 27.07 W |
| MTBF [years] | 60.18 years old |
| MTTR [hours] | 2 hours |
| Availability | >0.99999 |
| Noise at normal temperature (sound power) [dB(A)] | 49.3dB(A) |
| Noise at normal temperature (sound pressure) [dB(A)] | 37.3dB(A) |
| Number of card slots | 0 |
| Number of power sockets | 0 |
| Number of fan modules | 2 |
| Uplink ports | 4 10GE SFP+ ports |
| Downlink ports | 24 ports 10/100/1000BASE-T (400 W, PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at 0-1800 m (0-5905.44 ft.) |
| Limitations on the rate of change of operating temperature [°C(°F)] | When the altitude is 1,800–5,000 m (5,906–16,404 ft), the highest operating temperature decreases by 1°C (1.8°F) for each 220 m (722 ft) increase in altitude. Devices cannot be started when the temperature is below 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft) |
| Storage height [m(ft.)] | 0-5000 m (0-16404 ft) |
| Power mode | Built-in air conditioning |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | 6A |
| Memory | 2GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed control |
| Air flow direction | Air intake on the left and front, air outlet on the right |
| PoE | Maintained |
| Case law | EMC certified Safety certificate Production certification |
