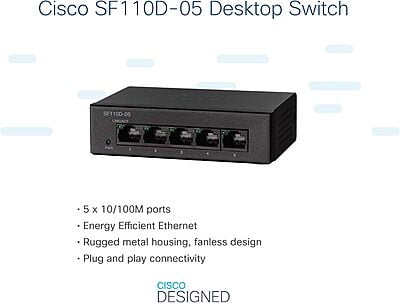

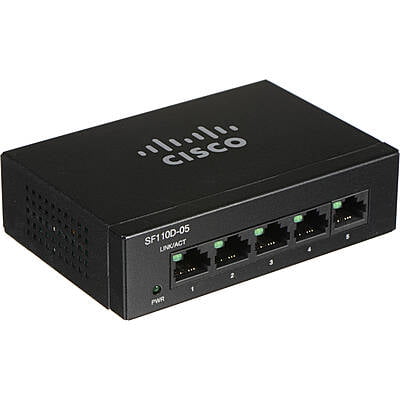

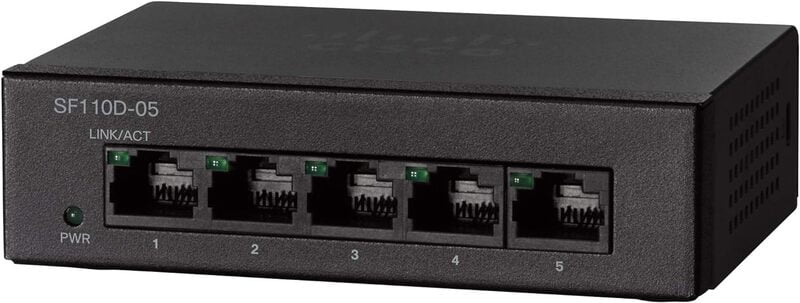

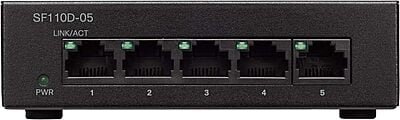

SF110D-05-UK

SF110D-05 Specification

Specifications

Description

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

Cabling type

Category 5e or better

LED indicators

System/PWR, link/activity, 100M,*PoE, *Max PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC*

*if present

Physical Interfaces

Ports

10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord

Power supply

DC 12V, 500mA

Lock slot

Slot for Kensington lock

Physical Specifications

Physical dimensions (W x D x H)

4.33 x 2.95 x 1.18 inches (110 x 75 x 30 mm)

Ports

5 RJ-45 connectors for 10BASE-T/100BASE-TX

Fan/fanless models

All models have no fans and are fanless, except for SG100-24HP

Performance

Switching capacity

1 Gbps

Forwarding capacity

0.74 mpps

Capabilities

Head-of-line (HOL) blocking

HOL blocking prevention

Jumbo frame

9216 bytes

Quality of service (QoS)

802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)

Loop detection

Helps discover loops in the network to avoid broadcast storms

Cable diagnostics

Quickly identify and troubleshoot network cable faults and/or shorts

Mounting and Physical Security

Mounting options

Desktop or rack mount

Physical security lock

Kensington lock slot

Environmental

Compliance/
certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*

*select models

Operating temperature

 32° to 104°F (0° to 40°C)

Storage temperature

-4° to 158°F (-20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

5% to 90%, relative, noncondensing
