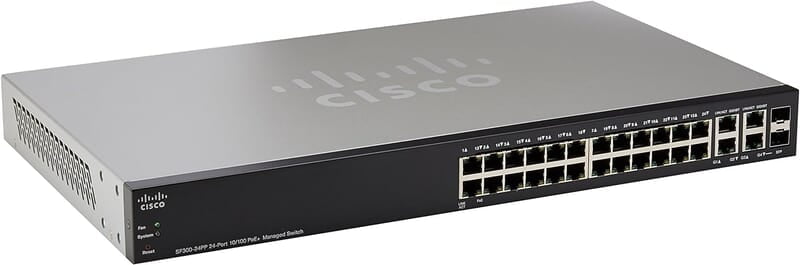

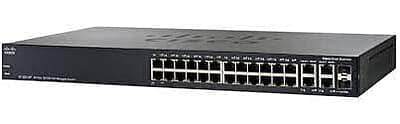

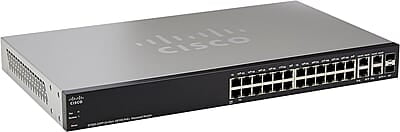

SF300-24PP-K9-UK
Product Highlights:
- 24 x 10/100 PoE+ Ports
- 2 x Combo Mini-GBIC + 2 x GbE Ports
- 128 MB RAM
- 16 MB Flash Memory
- QoS Support
- IPv4/IPv6 Support
- Advanced Security Management
- Auto Voice VLAN Capabilities
- Energy-Efficient Ethernet
- Mac, Windows, Linux Compatible
The Cisco 300 series, part of the Cisco Small Business line of network solutions is a portfolio of affordable managed switches that provides a reliable foundation for your business network. This switch delivers the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 300 series provides the ideal combination of affordability and capabilities for small businesses, and helps you create a more efficient, better-connected workforce.
The Cisco 300 series is broad portfolio of fixed-configuration managed Ethernet switches. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 300 series switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, This switch is simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.
| Cisco Small Business SF300-24PP - switch - 24 ports - Managed - rack-mountable | |
|---|---|
| Device Type | Switch - 24 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 180 W |
| Performance | Switching capacity: 12.8 Gbps ¦ Forwarding performance (64-byte packet size): 9.52 Mpps |
| Capacity | Static routes: 32 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | Static IPv4 routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI |
| Features | Layer 3 switching, Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, PoE+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 44 cm x 25.7 cm x 4.45 cm |
| Weight | 3.74 kg |
| Localisation | Europe |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | Static routes: 32 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Device Type | Switch - 24 ports - L3 - Managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Layer 3 switching, Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, PoE+ |
| Flash Memory | 16 MB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 12.8 Gbps ¦ Forwarding performance (64-byte packet size): 9.52 Mpps |
| PoE Budget | 180 W |
| Ports | 24 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 128 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI |
| Routing Protocol | Static IPv4 routing |
| Status Indicators | Port transmission speed, system, link/activity |
| Subtype | Fast Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 25.7 cm |
| Height | 4.45 cm |
| Weight | 3.74 kg |
| Width | 44 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 24 x 100Base-TX RJ-45 PoE+ ¦ 1 x console DB-9 management ¦ 4 x 1000Base-T RJ-45 ¦ 2 x |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
| Miscellaneous | |
|---|---|
| Cables Included | 1 x serial cable |
| Compliant Standards | UL 60950, CSA 22.2 No. 60950, FCC Part 15 A |
| Localisation | Europe |
| Rack Mounting Kit | Included |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
