SFP-GE-LX-SM1310
165.00SAR
Out of stock
Tags:
| Basic Information | |
| Part Number | 02315200 |
| Model | SFP-GE-LX-SM1310 |
| Description | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| Level-1 category | GE eSFP Optical Modules |
| Module name | SFP-GE-LX-SM1310 |
Product Details
SFP-GE-LX-SM1310 Overview

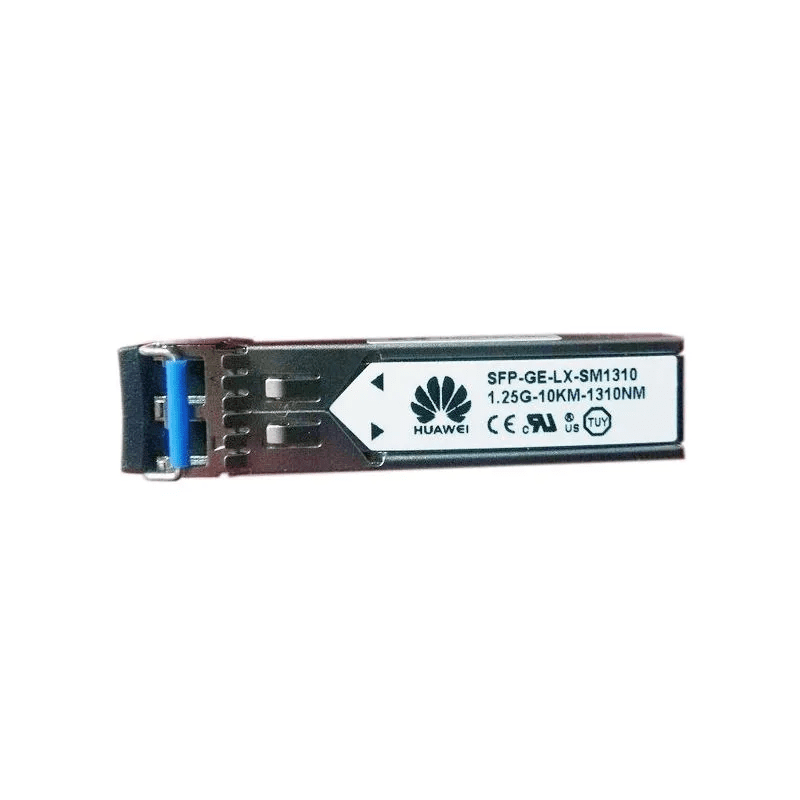

Huawei SFP-GE-LX-SM1310 is Optical Transceiver. It’s a Single-mode Module.
Quick Specs
Table 1 shows the Quick Specs.
Product Code | SFP-GE-LX-SM1310 |
Transceiver form factor | eSFP |
Transmission speed | 1 Gbit/s |
Center wavelength (nm) | 1310 |
Standard compliance | 1000base-LX/LH |
Connector type | LC |
Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
Transmit power (dBm) | -9.0 to -3.0 |
Maximum receiver sensitivity (dBm) | -20.0 |
Overload power (dBm) | -3.0 |
Extinction ratio (dB) | 9 |
Operating temperature | 0°C to 70°C (32°F to 158°F) |
Net Dimension(D x W x H mm) | 110 x 70 x 37 |
