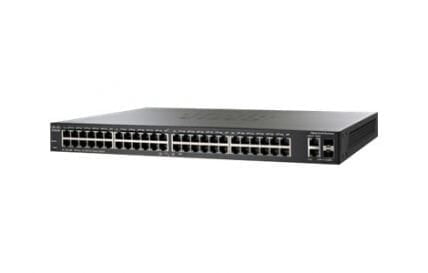

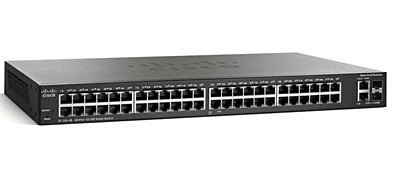

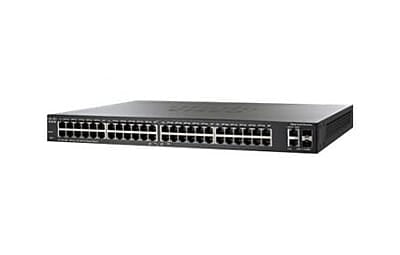

SLM248PT-G5

Performance

• Model Name: SF200-48P
• Part Number: SLM248PT
• Packets per Second: 6.55
• Switching Capacity: 8.8
• Flash 16 MB
• CPU memory 128 MB
• Power Consumption
  • Power Savings: Energy Detect
  • Power Usage: 37.5W
  • Heat Dissipation (BTU/hr): 127.5

Ports

• 48x 10/100 Fast Ethernet
• 2x 10/100/1000 Gigabit Ethernet Combo

Power over Ethernet (PoE)

• 24x PoE Ports (Maximum power of 15.4W to any 10/100 Ethernet base port)
• Total dedicated power to PoE: 180W

Specification

• Buttons Reset button
• Cabling type Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 ethernet or better for 1000BASE-T
• LEDs System, Link/Act, PoE, Speed
• Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
• Operating temperature 32° to 104°F (0° to 40°C)
• Storage temperature ¨C4° to 158°F (¨C20° to 70°C)
• Operating humidity 10% to 90%, relative, noncondensing
• Storage humidity 10% to 90%, relative, noncondensing

Security

• IEEE 802.1X (Authenticator role):
  • 802.1X: RADIUS authentication and accounting, MD5 hash
  • Supports time-based 802.1X
  • Dynamic VLAN assignment
• Port security Locks MAC addresses to ports, and limits the number of learned MAC addresses
• Storm control Broadcast, multicast, and unknown unicast

Quality of Service

• Priority levels: 4 hardware queues
• Scheduling Strict priority and weighted round-robin (WRR)
• Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)
• Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated
• Services (DiffServ)
• Rate limiting Ingress policer, per VLAN and per port

Power Efficiency

• Energy Detect Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down Active mode is resumed without loss of any packets when the switch detects the link is back up
• Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10 m.

General

• Jumbo frames Frame sizes up to 10 KB supported on 10/100 and Gigabit interfaces
• MAC table Up to 8000 MAC addresses

Discovery

• Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDPMED extensions: LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
• Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol (available April 2011)
