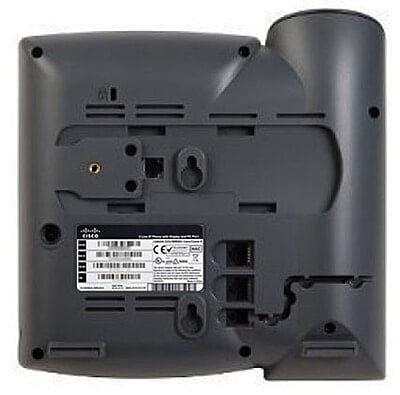

SPA502G
Easy to install, with menu-based and web-based configuration, the SPA502G includes dual switched Ethernet ports for connecting to a computer. Wideband audio provides enhanced voice and speaker clarity and the Cisco SPA502G supports productivity-enhancing features such as VoiceView Express and Cisco XML applications when used with Cisco Unified Communications 500 Series in SPCP mode.
The Cisco SPA502G supports both Session Initiation Protocol (SIP) and Smart Phone Control Protocol (SPCP) with the Cisco Unified Communications 500 Series for Small Business. It also supports Carrier-Grade Security, Provisioning, and Management.
Key Features
- One voice line
- One SIP registration
- Line status: active line indication, with name and number
- Speakerphone
- Call hold, call waiting, caller ID
- Music on hold
- Call transfer
- Three-way call conferencing with local mixing
- Multiparty conferencing via external conference bridge
- Automatic redial of last calling and last called numbers
- On-hook dialling
- Call logs (60 entries each)
- Personal directory with auto-dial (100 entries)
- Do not disturb
- Digits dialled with number auto-completion
- Anonymous caller blocking
- Multiple ring tones
- Highly secure call encrypted voice communications support
- Built-in web server for administration and configuration with multiple security levels
- Pixel-based display: 128 x 64 monochrome LCD graphical display with backlight
- 3 Dedicated illuminated buttons
- 4-way menu navigation
- Voicemail message waiting indicator (VMWI) light
- Volume control rocking up/down knob controls handset, headset, speaker, ringer
- Headset jack: 2.5 mm
- Two Ethernet ports with integrated Ethernet switch: 10/100BASE-T RJ-45
