TL-SG1008P
SAR210.00
Out of stock
Tags:
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power.
Product Details

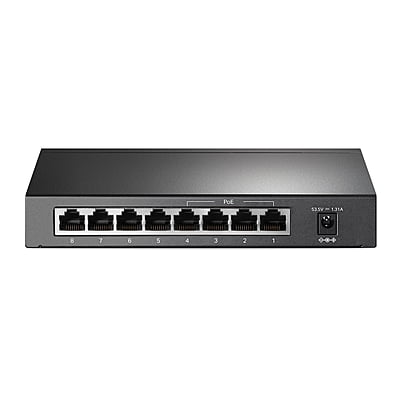

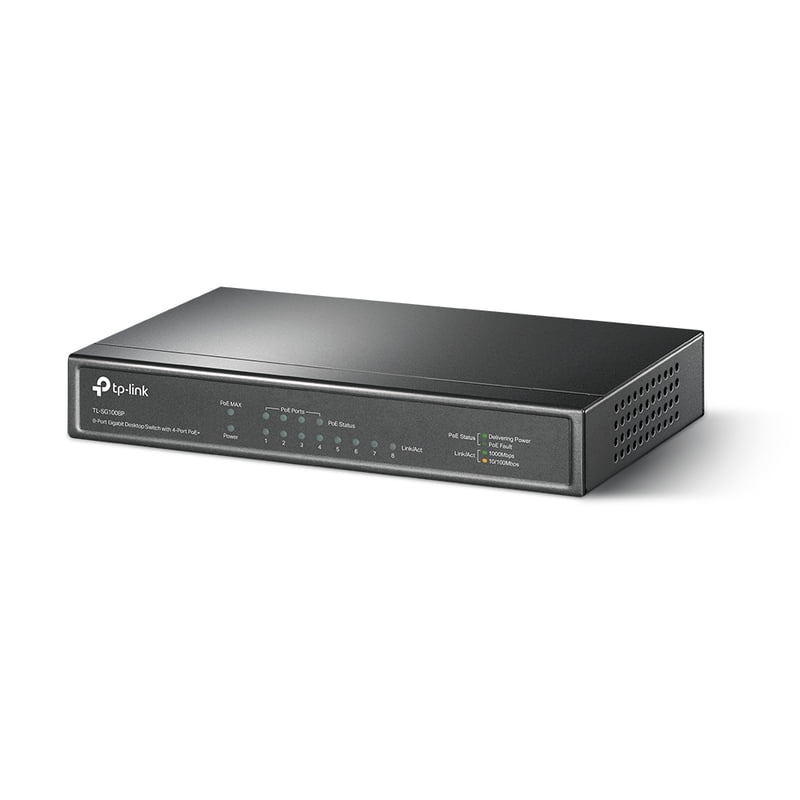

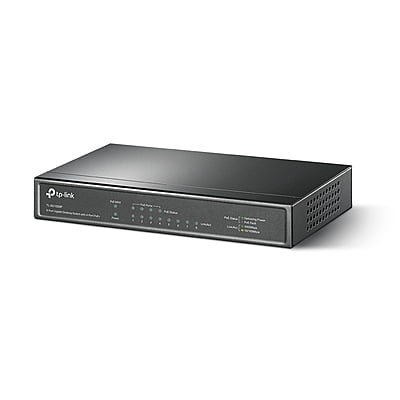

TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE+
- 8× 10/100/1000 Mbps RJ45 ports.
- 4× PoE+ ports transfer data and power on the cables
- Works with IEEE 802.3af/at compliant PDs
- Plug and Play, no configuration and installation required
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 30 W for each PoE port
- Supports PoE power up to 64 W for all PoE ports
| HARDWARE FEATURES | |
|---|---|
| Interface | 8× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External power adapter (Output: 54VDC / 1.3A) |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: ports 1–4 • Power budget for all PoE ports: 64 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171×98×27 mm) |
| Max Power Consumption | • 5.4 W (with no PD connected) • 75 W (with 64W PD connected) |
| Max Heat Dissipation | • 18.4 BTU/h (with no PD connected) • 225.8 BTU/h (with 64 W PD connected) |
