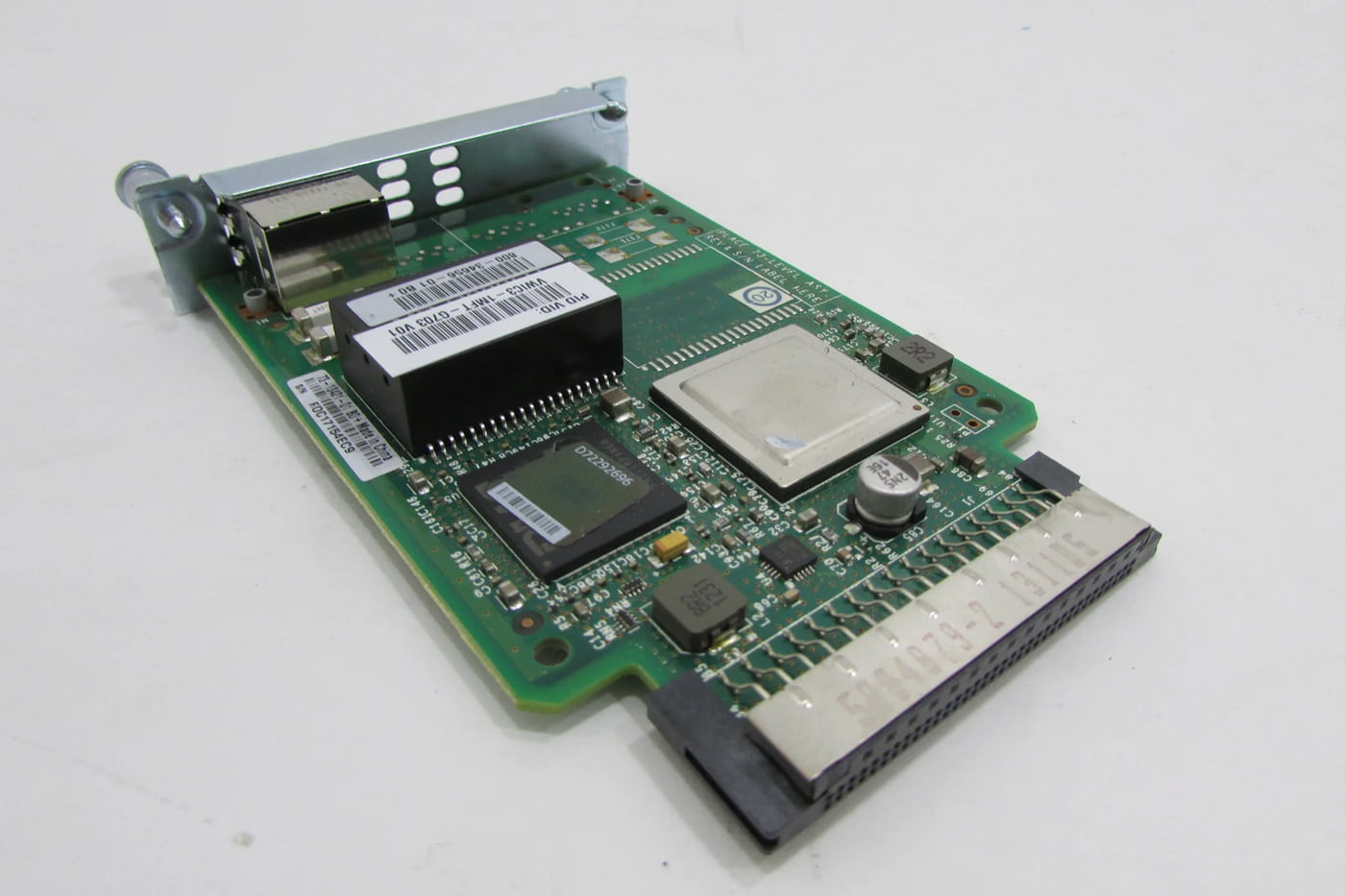

VWIC3-1MFT-G703=

VWIC3-1MFT-G703

Manufacturer

Cisco

Part Number

VWIC3-1MFT-G703

Device Type

Interface module

Form factor

1-Port G.703 Multiflex Trunk Voice/WAN Interface Card

Specifications

Number of Ports

1

T1 Support

Yes

E1 Support

Yes

Unstructured E1 (G.703) Support

Yes

Data Support WIC Mode

Yes

Voice Support VIC*

Yes

Drop-and-Insert Multiplexing

Yes

Configuration Comparison

Serial Data (channel-group*)

2 total
2 per port

Voice CAS (ds0-group**)

24 total (T1)
31 total (E1)
1 per timeslot

PRI (pri-group***)

1 total
1 per port

Drop & Insert (tdm-group****)

24 total (T1)
31 total (E1)
1 per timeslot

Network Management Features

Telnet or Console

Remote and local configuration, monitoring, and troubleshooting from Cisco IOS Software CLI

Simple Network Management Protocol (SNMP)

• Router and DSU/CSU managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user

• Standard MIB (MIB II)

• Cisco Integrated DSU/CSU MIB

• RFC 1406 T1 MIB, Including Alarm Detection and Reporting

SNMP Traps

Generated in response to alarms
