WS-C3560X-48T-S
Non-returnable
SAR12,656.25
Tags:

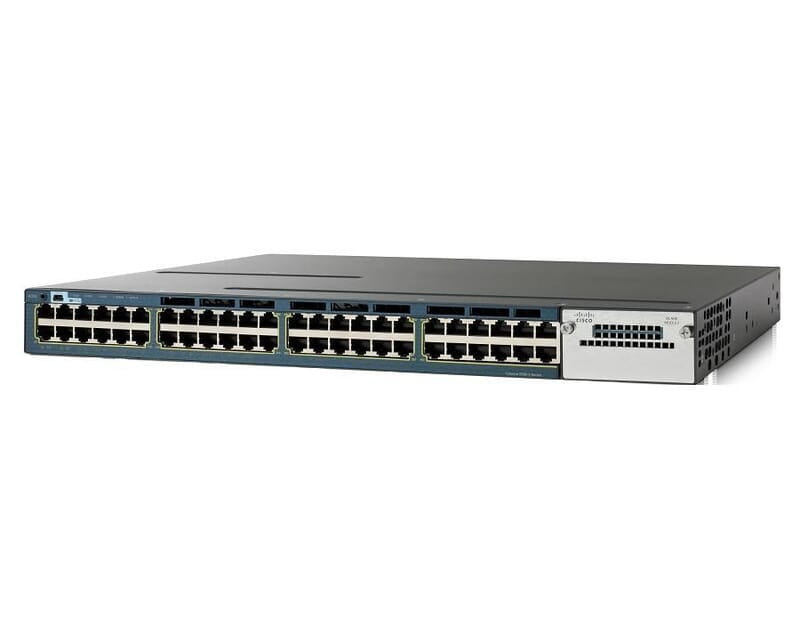

The Cisco Catalyst WS-C3560X-48T-S is a standalone Gigabit Ethernet switch designed for enterprise networks. Here's a breakdown of its key features:
- Ports: 48 Gigabit Ethernet ports for high-speed connections to devices.
- Layer 3 Switching (Limited): Offers basic Layer 3 routing capabilities out of the box, with the option to upgrade to advanced routing features with an additional license.
- Security: Equipped with advanced security features to protect your network.
- Management: Supports various management options for easy configuration and monitoring.
- IP Base Feature Set: This version provides up to 1005 VLANs for network segmentation and basic Layer 3 routing functionality.
- No Stacking: This switch operates as a standalone unit and cannot be stacked with other switches for redundancy or increased capacity.
- Power Supply: Includes a single 350W AC power supply. An additional power supply can be purchased for redundancy.
The Cisco Catalyst WS-C3560X-48T-S is a standalone Gigabit Ethernet switch designed for enterprise networks. Here's a breakdown of its key features:
- Ports: 48 Gigabit Ethernet ports for high-speed connections to devices.
- Layer 3 Switching (Limited): Offers basic Layer 3 routing capabilities out of the box, with the option to upgrade to advanced routing features with an additional license.
- Security: Equipped with advanced security features to protect your network.
- Management: Supports various management options for easy configuration and monitoring.
- IP Base Feature Set: This version provides up to 1005 VLANs for network segmentation and basic Layer 3 routing functionality.
- No Stacking: This switch operates as a standalone unit and cannot be stacked with other switches for redundancy or increased capacity.
- Power Supply: Includes a single 350W AC power supply. An additional power supply can be purchased for redundancy.
Choose Quantity
Product Details
| WS-C3560X-48T-S | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560X-48T-S |
| Product Type | Switch - 48 ports - L3 - Managed |
| Form Factor | Rack mountable - 1U |
| Switch Ports | 48 x 10/100/1000 Ethernet Ports Ethernet Ports |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity Slots | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 USB : 1 x 4 PIN USB Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply | |
| Power Device | Power supply - redundant - plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.3 kg |
| Rack Mounting Kit | Optional |
| MTBF | 186,778 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Base |
